| Connector A: | DVI-D (Dual Link) Male |
| Connector B: | DVI-D (Dual Link) Male |
|
Ship Weight:
|
0.30 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |
Digital Visual Interface (DVI) is the standard interface for a high-performance connection between PCs and flat panel displays, digital CRT displays, projectors, and HDTV. The DVI-D Digital Cable delivers the high-performance, high-bandwidth interface needed for video displays of today while leaving headroom for the products of tomorrow. These precision-engineered cables are fully compliant with the DVI standard defined by DDWG (Digital Display Working Group). The DVD-D dual link configuration provides enough bandwidth for resolutions up to 2048 x 1536 and allows high speed digital transmission up to 9.9 Gbps.

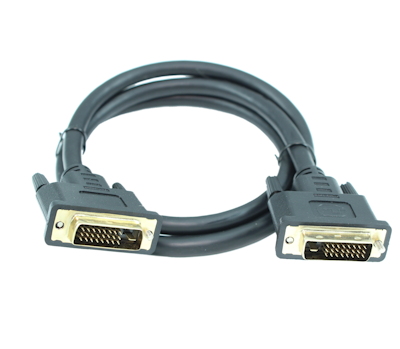

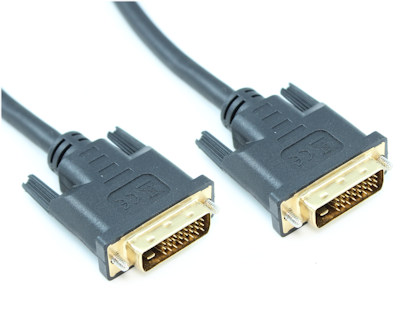

- Connector Type: DVI-D male to DVI-D male
- Signal Type: Digital ONLY
- Connector Finish: Gold Plated
- Gauge/AWG: 30AWG
- Pin Configuration 24 + 1 Blade
- Shielding level: Triple
- Shielding type: EMI
- Ferrite Cores: No
- 1080p support Yes
- Bandwidth: Dual Link (Single Link also supported)
- Maximum Resolution 2048 x 1536
- Min Clock Freq. 21.76 Mhz
- Max Clock Freq 165 Mhz x 2
- Max Throughput 7.4 Gbs
- Pixels per cycle 2, Bits per Pixel 24
- DDWG, HDCP, & RoHS Compliant
- UL Certified: E119932, Style: 20276
NOTE: This cable is NOT suitable for DVI-A (analog) connections as the HDMI standard is SINGLE LINK DIGITAL ONLY.
