| Connector A: | DVI-D (Dual Link) Male |
| Connector B: | DVI-D (Dual Link) Male |
|
Ship Weight:
|
6.60 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |
Digital Visual Interface (DVI) is the standard interface for a high-performance connection between PCs and flat panel displays, digital CRT displays, projectors, and HDTV. The DVI-D Digital Cable delivers the high-performance, high-bandwidth interface needed for video displays of today while leaving headroom for the products of tomorrow. These precision-engineered cables are fully compliant with the DVI standard defined by DDWG (Digital Display Working Group). The DVD-D dual link configuration provides enough bandwidth for resolutions up to 2048 x 1536 and allows high speed digital transmission up to 9.9 Gbps.

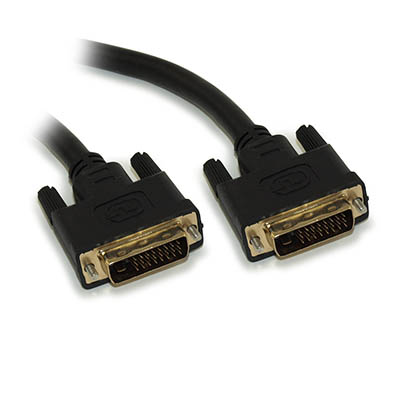

- Connector Type: DVI-D male to DVI-D male
- Signal Type: Digital ONLY
- Connector Finish: Gold Plated

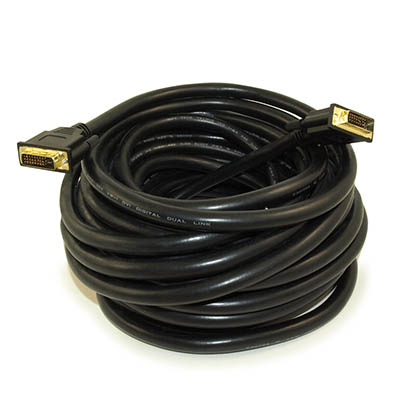

- Length: 50ft
- Gauge/AWG: 24AWG
- Pin Configuration 24 + 1
- Shielding level: Triple
- Shielding type: EMI
- Ferrite Cores: No
- 1080p support Yes
- Bandwidth: Dual Link (Single Link also supported)
- Maximum Resolution 2048 x 1536
- Min Clock Freq. 21.76 Mhz
- Max Clock Freq 165 Mhz x 2
- Max Thoroughput 7.4 Gbs
- Pixels per cycle 2, Bits per Pixel 24
- DDWG, HDCP, & RoHS Compliant
- UL Certified: E119932, Style: 20276
This cable is NOT suitable for DVI-A (analog) connections.
DVI FAQ
The DVI connector usually contains pins to pass the DVI-native digital video signals. In the case of dual-link systems, additional pins are provided for the second set of data signals.
As well as digital signals, the DVI-I connector includes pins providing the same analog signals found on a VGA connector, allowing a VGA monitor to be connected with a simple plug adapter. This feature was included in order to make DVI universal, as it allows either type of monitor (analog or digital) to be operated from the same connector.
The DVI connector on a device is therefore given one of three names, depending on which signals it implements:
- DVI-D (digital only - This is the standard that this cable uses)
- DVI-A (analog only, compatible with VGA/analog video, very rarely used any more)
- DVI-I (integrated, both digital & analog with analog signals compatible with VGA)
