Lengths Available: |
6in, 1.5ft, 3ft, 6ft, 10ft, 15ft, 25ft, 30ft, 35ft, 50ft, |
|
Colors Available: |
|
|
Part Numbers this model: |
FE-DD-6IN, GC-DD-01, GC-DD-03, GC-DD-06, HA-DD-10, GC-DD-15, HA-DD-25, GC-DD-30, HA-DD-35, HA-DD-50, |
| |
|
|
Sales Category: |
DVI Cables |
Wire Gauge (AWG): |
30 AWG |
|
Connector A: |
DVI-D (Dual Link) Male |
Specification: |
|
|
Connector B: |
DVI-D (Dual Link) Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
|

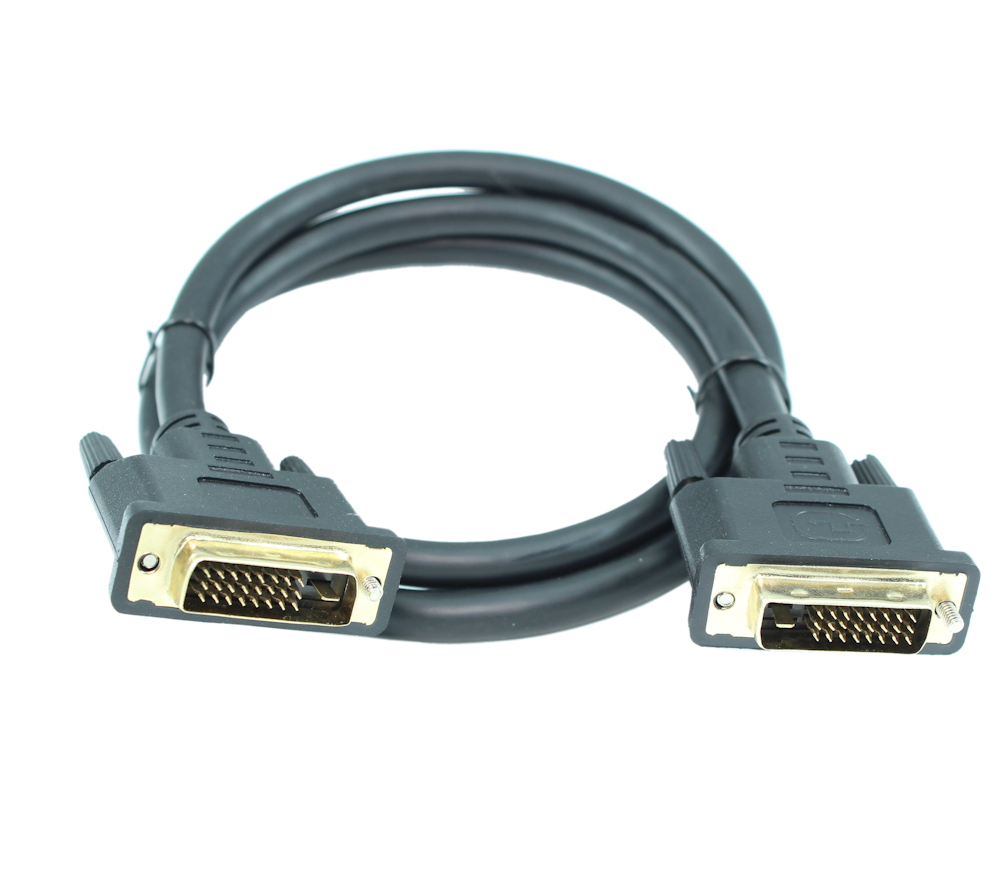

Images Length/Size Shown: |
3 FT |
|
# Positions: |
|
Shielding: |
Double Shielded |
|
Convert From/To: |
|
Type: |
|
|

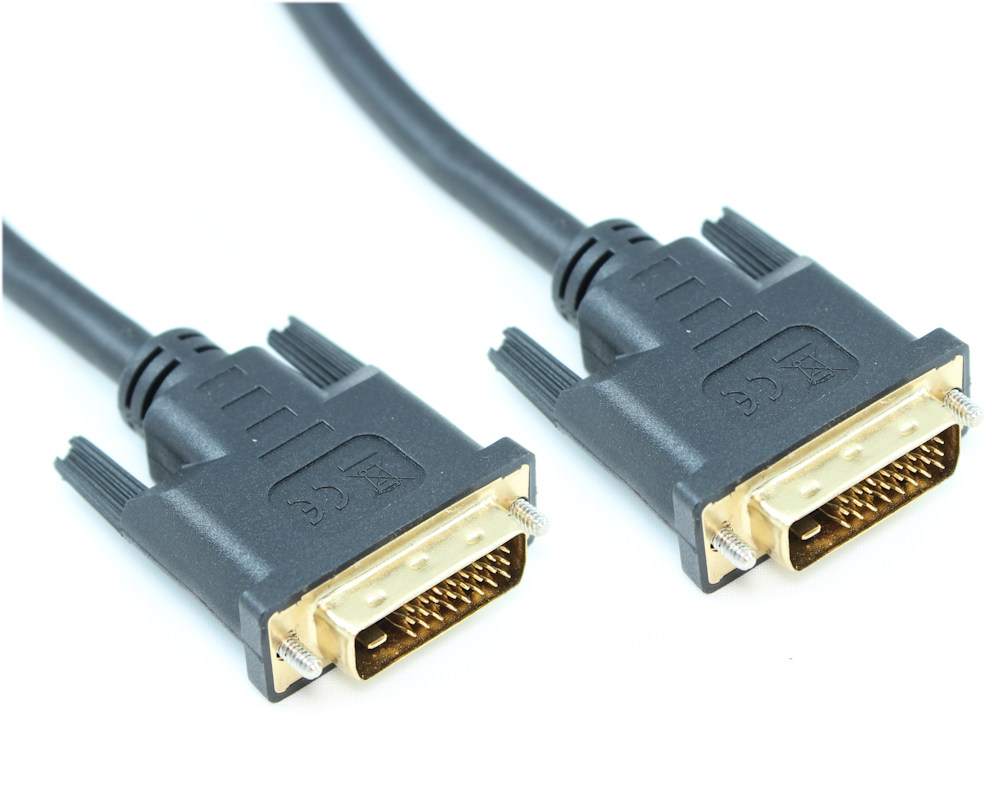

Digital Visual Interface (DVI) is the standard interface for a high-performance connection between PCs and flat panel displays, digital CRT displays, projectors, and HDTV. The DVI-D Digital Cable delivers the high-performance, high-bandwidth interface needed for video displays of today while leaving headroom for the products of tomorrow. These precision-engineered cables are fully compliant with the DVI standard defined by DDWG (Digital Display Working Group). The DVD-D dual link configuration provides enough bandwidth for resolutions up to 2048 x 1536 and allows high speed digital transmission up to 9.9 Gbps.- Connector Type: DVI-D male to DVI-D male
- Signal Type: Digital ONLY
- Connector Finish: Gold Plated
- Gauge/AWG: 30AWG
- Pin Configuration 24 + 1 Blade
- Shielding level: Triple
- Shielding type: EMI
- Ferrite Cores: No
- 1080p support Yes
- Bandwidth: Dual Link (Single Link also supported)
- Maximum Resolution 2048 x 1536
- Min Clock Freq. 21.76 Mhz
- Max Clock Freq 165 Mhz x 2
- Max Throughput 7.4 Gbs
- Pixels per cycle 2, Bits per Pixel 24
- DDWG, HDCP, & RoHS Compliant
- UL Certified: E119932, Style: 20276
NOTE: This cable is NOT suitable for DVI-A (analog) connections as the HDMI standard is SINGLE LINK DIGITAL ONLY.
|
