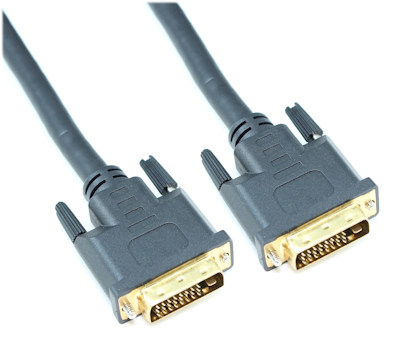

| Connector A: | DVI-D (Dual Link) Male |
| Connector B: | DVI-D (Dual Link) Male |
|
Ship Weight:
|
4.21 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |
Digital Visual Interface (DVI) is the standard interface for a high-performance connection between PCs and flat panel displays, digital CRT displays, projectors, and HDTV
Signal Type: Digital ONLY
Connector Finish: Gold Plated
Gauge/AWG: 26AWG
Pin Configuration 24 + 1 Blade
Shielding level: Triple
Shielding type: EMI
Ferrite Cores: No
1080p support Yes
Bandwidth: Dual Link (Single Link also supported)
Maximum Resolution 2048 x 1536
Min Clock Freq. 21.76 Mhz, Max: 165 Mhz x 2
Max Throughput 7.4 Gbs
Pixels per cycle 2, Bits per Pixel 24
DDWG, HDCP, & RoHS Compliant

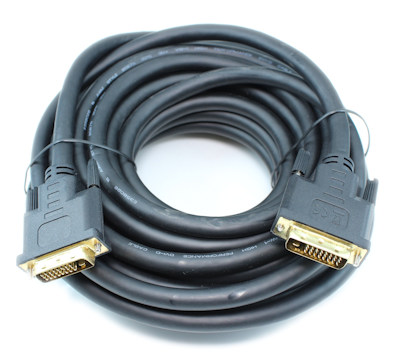

This cable is NOT suitable for DVI-A (analog) connections as the HDMI standard is SINGLE LINK DIGITAL ONLY. Photo shows product WITH ferrite cores. Actual product supplied is WITHOUT ferrite cores.
DVI FAQ
The DVI connector usually contains pins to pass the DVI-native digital video signals. In the case of dual-link systems, additional pins are provided for the second set of data signals. As well as digital signals, the DVI-I connector includes pins providing the same analog signals found on a VGA connector, allowing a VGA monitor to be connected with a simple plug adapter. This feature was included in order to make DVI universal, as it allows either type of monitor (analog or digital) to be operated from the same connector.
