| Color: | Black |
|
Ship Weight:
|
8.25 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

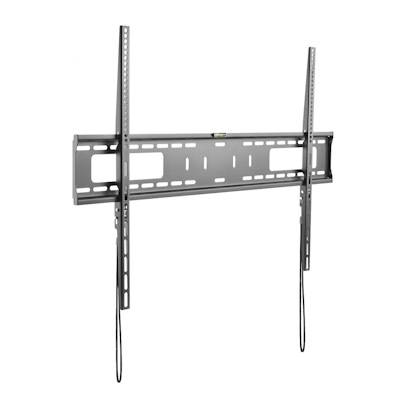

The large low profile fixed wall mount can accommodate most 60"-100" LED, LCD Flat Panel TVs with a maximum weight of 165lbs/75kgs.The applicable screen size is almost twice as large as that classic ones. Slim design sits just 30.5mm from wall to complement the sleek look of ultra-thin TVs. Its automatically click-in spring lock with easily-release cord easily and securely attaches flat panels to wall. Compatible with VESA hole up to 900x600. In addition, it's suitable for curved TV. Simple construction enables easy installation.
Compatibility:
Will fit most small to LARGE flat panel LCD and LED TVs with mounting patterns up to VESA 900x600.
Mounting holes on television should be 36.3in or less apart horizontally & 24in or less apart vertically
Maximum weight capacity: 165bs
Dimensions:
Wall plate: 37.6 x 5.9 inches
Arm Measurements (length): 24.6"
Measurements are from edge to edge. Mounting points for bolts will be shorter.
Range of Motion:
Tilt: Fixed
Swivel: None
Extension from wall: 1.2in when parallel to the wall
Curved TV Support using supplied spacers and bushings
Design & Construction:
Solid toughened steel construction
Durable scratch resistant
Black Finish
Easy installation
Included in Box:
Mount
Mounting hardware
Supplied Bolts: (4) M5x14, (4) M6x14, (4) M8x20, (4) M6x30, (4) M8x30
User manual
Please Note: Please DOUBLE CHECK your TVs VESA SIZE and/or mount hole widths and heights and compare these measurements to our clearly published hole width and height size ranges shown above
