| Color: | Black |
|
Ship Weight:
|
13.02 lbs |
|
Warranty: |
1 Year |
|
Tariff Code: |
8302.50.00.00 |

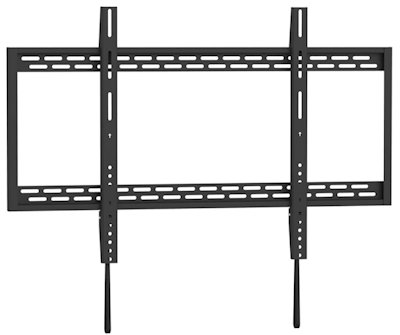

This extra heavy duty wall mount bracket employs 3mm steel wall frame and supports up to 220lbs (100Kg) flat TV. Applicable screen size is 60 to 100 inch flat TVs. It is good for boardrooms, conference room, or home theaters. Hardware is included for wood studs or concrete wall mounting.
Compatibility:
Will fit most small to LARGE flat panel LCD and LED TVs with mounting patterns up to VESA 900x600.
Mounting holes on television should be 36.3in or less apart horizontally & 24in or less apart vertically
Maximum weight capacity: 210lbs
Dimensions:
Wall plate: 39.7in x 15.74in
Arm Measurements (length): 24in
Measurements are from edge to edge. Mounting points for bolts will be shorter.
Range of Motion:
Tilt: Fixed
Swivel: None
Extension from wall: 1.25in when parallel to the wall
Curved TV Support using supplied spacers and bushings
Design & Construction:
Solid toughened steel construction
Durable scratch resistant
Black Finish
Easy installation
Included in Box:
Mount
Mounting hardware
Supplied Bolts: (4) M5x14, (4) M6x14, (4) M8x20, (4) M6x30, (4) M8x30
User manual
Please Note: Please DOUBLE CHECK your TVs VESA SIZE and/or mount hole widths and heights and compare these measurements to our clearly published hole width and height size ranges shown above
Mounting your TV onto Brick, Masonry, or Concrete? Check out our Anchor Bolts
Mounting your TV directly onto Drywall? Check out our Drywall Mount Kits
