Lengths Available: |
32-55in, 32-55in, 37-70in, 37-80in, 60-100in, 60-120in, each, |
|
Colors Available: |
Black
|
|
Part Numbers this model: |
LU-KL22-44F, LU-LDT03-17S, LU-PLB-34L, LU-KL22-64F, LU-LP37-69F, LU-LP73-69F, BE-502731BK, |
| |
|
|
Sales Category: |
TV Mounts |
Approx TV Size / Weight: |
60 - 100, 165lbs Max |
|
VESA Type / Style: |
VARIABLE / FLAT TO WALL |
Vesa Specs (WxH) mm: |
FROM 75x75 TO 900x600 |
|
Mount Holes (WxH):
RANGE |
FROM: 3.0" (W) x 3.0" (H) TO: 35.4" (W) x 23.6" (H) |
Supports Curved TVs?: |
Yes |
|

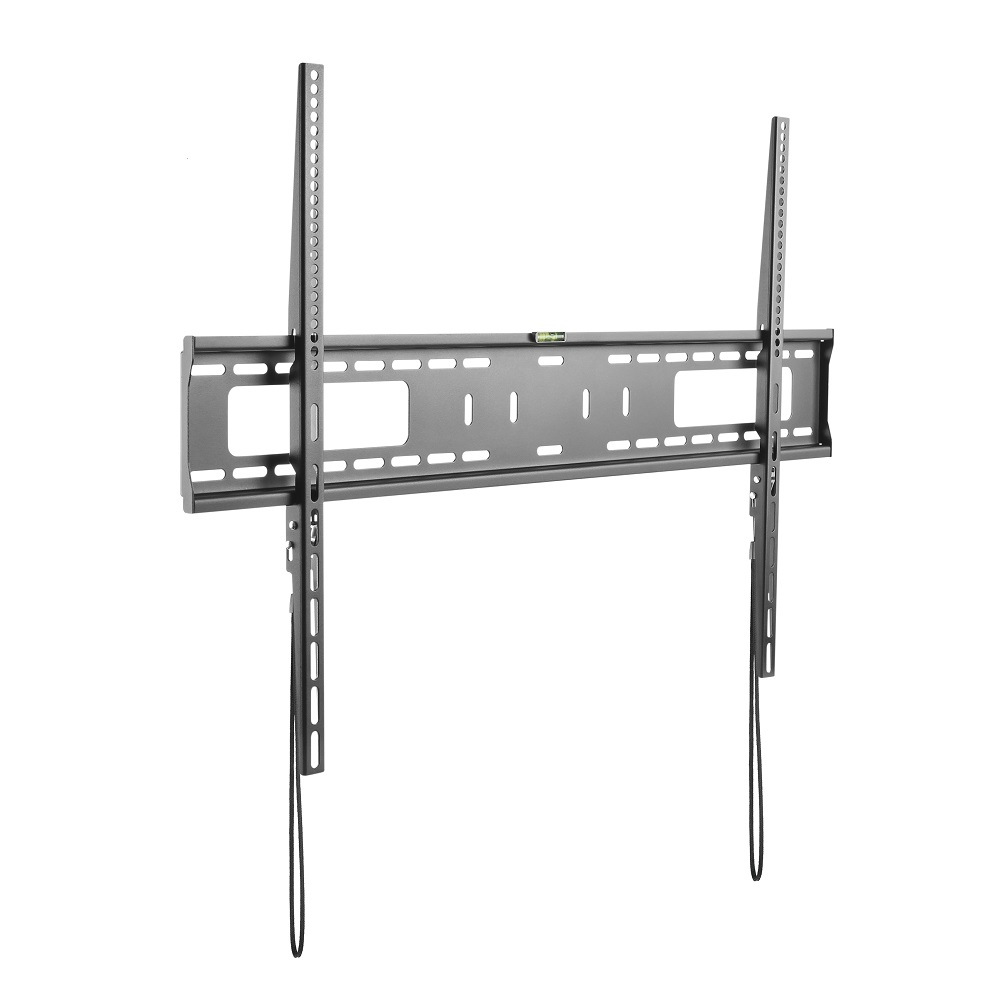

The large low profile fixed wall mount can accommodate most 60"-100" LED, LCD Flat Panel TVs with a maximum weight of 165lbs/75kgs.The applicable screen size is almost twice as large as that classic ones. Slim design sits just 30.5mm from wall to complement the sleek look of ultra-thin TVs. Its automatically click-in spring lock with easily-release cord easily and securely attaches flat panels to wall. Compatible with VESA hole up to 900x600. In addition, it's suitable for curved TV. Simple construction enables easy installation.
Compatibility:
Will fit most small to LARGE flat panel LCD and LED TVs with mounting patterns up to VESA 900x600.
Mounting holes on television should be 36.3in or less apart horizontally & 24in or less apart vertically
Maximum weight capacity: 165bs
Dimensions:
Wall plate: 37.6 x 5.9 inches
Arm Measurements (length): 24.6"
Measurements are from edge to edge. Mounting points for bolts will be shorter.
Range of Motion:
Tilt: Fixed
Swivel: None
Extension from wall: 1.2in when parallel to the wall
Curved TV Support using supplied spacers and bushings
Design & Construction:
Solid toughened steel construction
Durable scratch resistant
Black Finish
Easy installation
Included in Box:
Mount
Mounting hardware
Supplied Bolts: (4) M5x14, (4) M6x14, (4) M8x20, (4) M6x30, (4) M8x30
User manual
Please Note: Please DOUBLE CHECK your TVs VESA SIZE and/or mount hole widths and heights and compare these measurements to our clearly published hole width and height size ranges shown above
Mounting your TV onto Brick, Masonry, or Concrete? Check out our Anchor Bolts
Mounting your TV directly onto Drywall? Check out our Drywall Mount Kits
|
