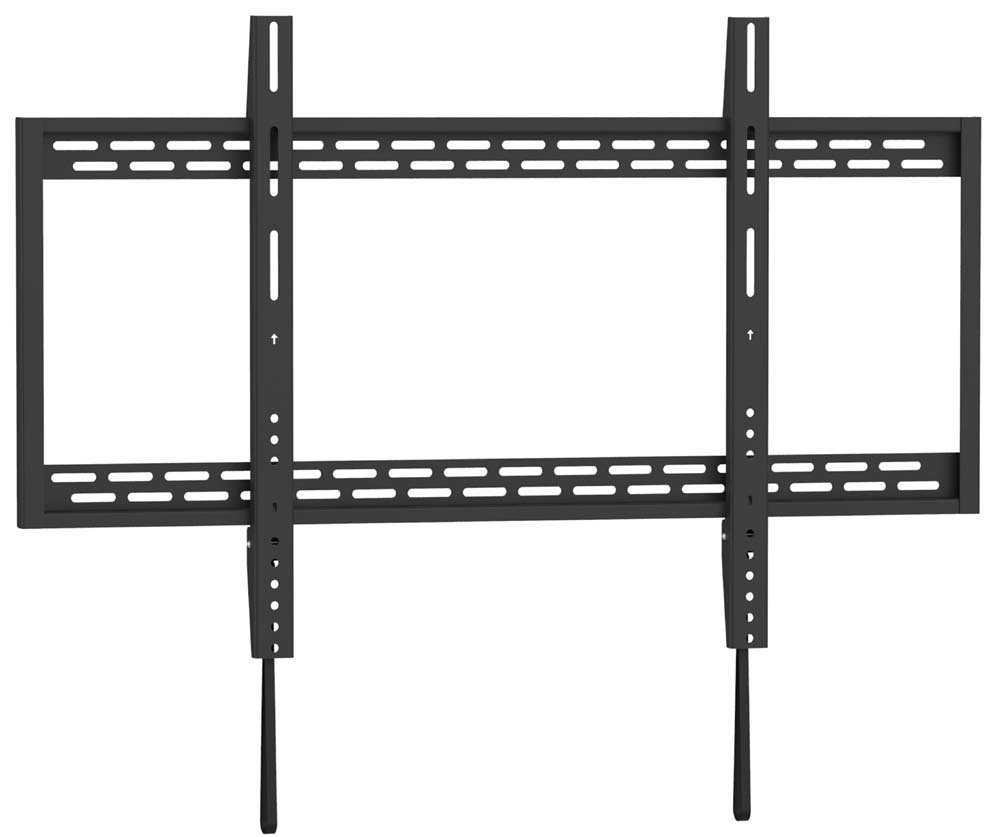

LOW PROFILE Wall Mount Bracket 60-100" TVs to 220 lbs Black


 Lengths Available: 32-55in, 32-55in, 37-70in, 37-80in, 60-100in, 60-120in, each,
 Colors Available: Black
 Part Numbers this model: LU-KL22-44F, LU-LDT03-17S, LU-PLB-34L, LU-KL22-64F, LU-LP37-69F, LU-LP73-69F, BE-502731BK,

 Sales Category: TV Mounts  Approx TV Size / Weight: 60 - 100, 220lbs Max
 VESA Type / Style: VARIABLE / FLAT TO WALL  Vesa Specs (WxH) mm: FROM 200x200 TO 900x600
   Mount Holes (WxH):  RANGE FROM: 7.9" (W) x 7.9" (H) TO: 35.4" (W) x 23.6" (H)  Supports Curved TVs?: Yes

This extra heavy duty wall mount bracket employs 3mm steel wall frame and supports up to 220lbs (100Kg) flat TV. Applicable screen size is 60 to 100 inch flat TVs. It is good for boardrooms, conference room, or home theaters. Hardware is included for wood studs or concrete wall mounting.

Compatibility:
  • Will fit most small to LARGE flat panel LCD and LED TVs with mounting patterns up to VESA 900x600.
  • Mounting holes on television should be 36.3in or less apart horizontally & 24in or less apart vertically
  • Maximum weight capacity: 210lbs

    Dimensions:
  • Wall plate: 39.7in x 15.74in
  • Arm Measurements (length): 24in
  • Measurements are from edge to edge. Mounting points for bolts will be shorter.

    Range of Motion:
  • Tilt: Fixed
  • Swivel: None
  • Extension from wall: 1.25in when parallel to the wall
  • Curved TV Support using supplied spacers and bushings

    Design & Construction:
  • Solid toughened steel construction
  • Durable scratch resistant
  • Black Finish
  • Easy installation

    Included in Box:
  • Mount
  • Mounting hardware
  • Supplied Bolts: (4) M5x14, (4) M6x14, (4) M8x20, (4) M6x30, (4) M8x30
  • User manual

    Please Note: Please DOUBLE CHECK your TVs VESA SIZE and/or mount hole widths and heights and compare these measurements to our clearly published hole width and height size ranges shown above
