| Connector A: | HDMI Standard Type A Female |
| Connector B: | HDMI Standard Type A Female |
|
Ship Weight:
|
0.31 lbs |
|
Warranty: |
1 Year |
|
Tariff Code: |
8525.50.30.35 |

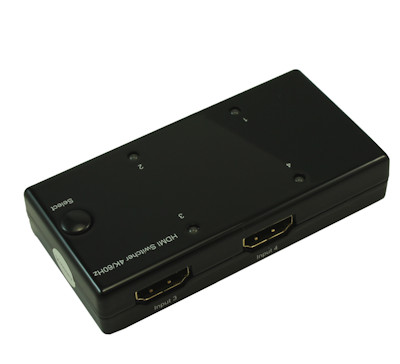

This is a high-performance HDMI 4x1 Switcher which not only has the key-press-switching function, but also has intelligent function. This HDMI Switcher routes high definition video (in multiple resolutions up to 4kx2k@60HZ) and digital audio from any one of three sources to display units. All inputs accommodate the connections of the high definition video sources simultaneously, compatible well for DMR-BZT9600, BDP-LX88, SONY FMP-X10-001, nVidia GTX970,GTX980 series, output sends the high definition audio/video signals to a high definition display like Samsung UA48HU5900,SONY KD-55X8000B.
Features
- Support to switch 4 HDMI sources to 1 HDMI display
- Multifunctional on switching: intelligent or mechanical
- Support highest video resolution up to 4kx2k@60Hz
- Support HDMI max 600MHz Bandwidth
- Support Full 3D
- Auto Sensing switching (with compatible source devices)
- HDCP Pass through, HDCP 2.2 support
- Support compressed audio such as DTS Digital, Dolby Digital including DTS-HD and Dolby True HD
- EDID bypass
- Dimensions: 80x58x15mm

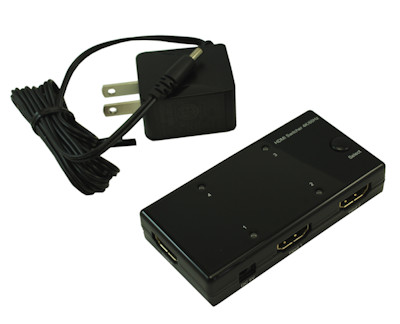

- 5V Power Supply INCLUDED
- Weight: 47g
- Power: 5V/1A, 2W
