| Connector A: | Serial DB9 (RS-232) Female |
| Connector B: | Serial DB25 (RS-232) Male |
|
Ship Weight:
|
0.39 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

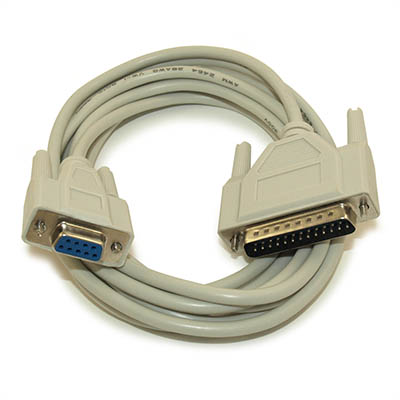

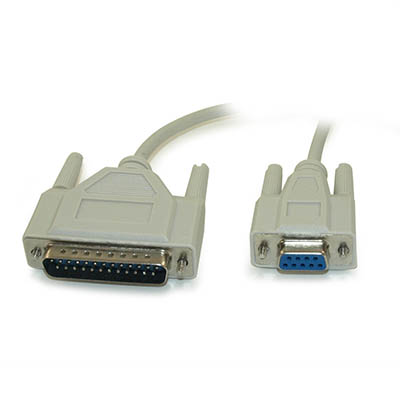

DB25 Male to DB9 Female serial cable is used to connect PC with DB9 COM port and device with DB25 serial port.
Specifications:- Fully shielded to prevent unwanted EMI/RFI interference
- Fully molded connectors with thumbscrews provide a quick and easy connection every time
- Connectors: DB9 Female to DB25 Male
- 30AWG Cabling, OD 5.0mm
- Pinout (9 to 25pin connectors): 1-8, 2-3, 3-2, 4-20, 5-7, 6-6, 7-4, 8-5, 9-22, G-G (Shell)
