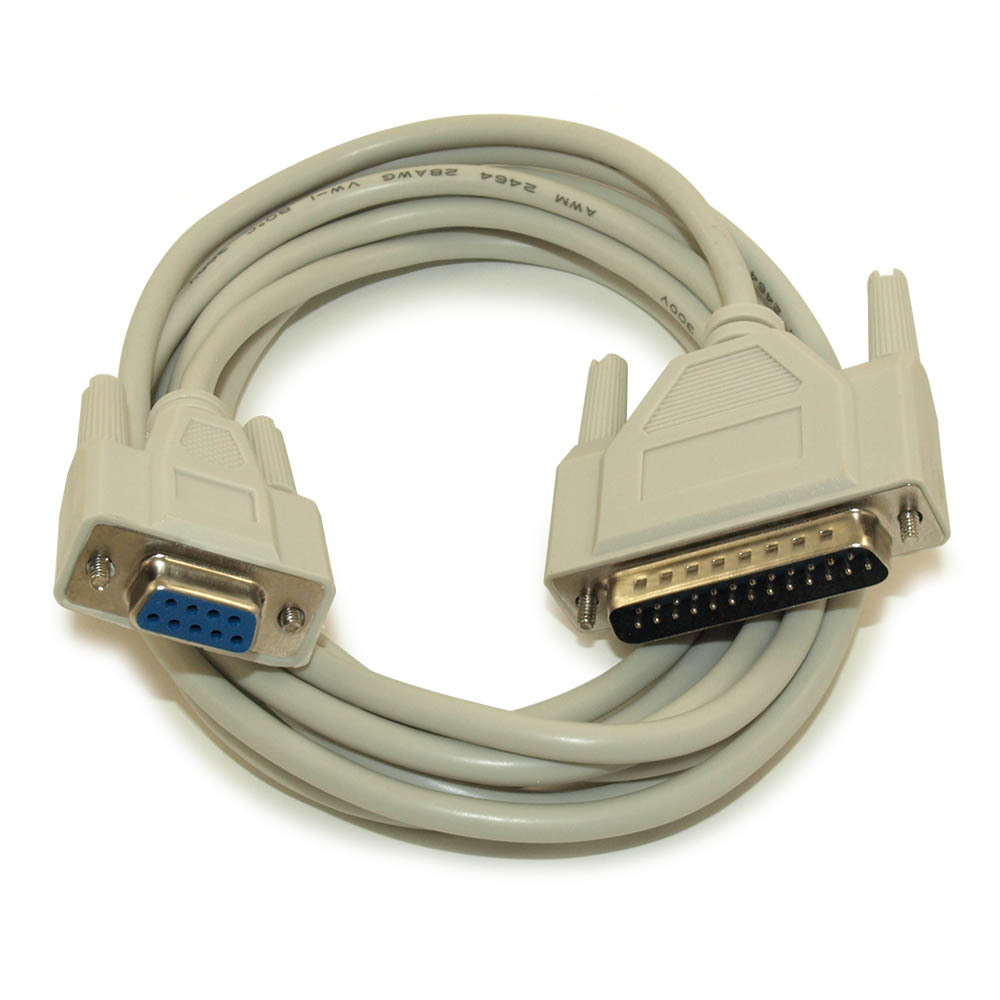

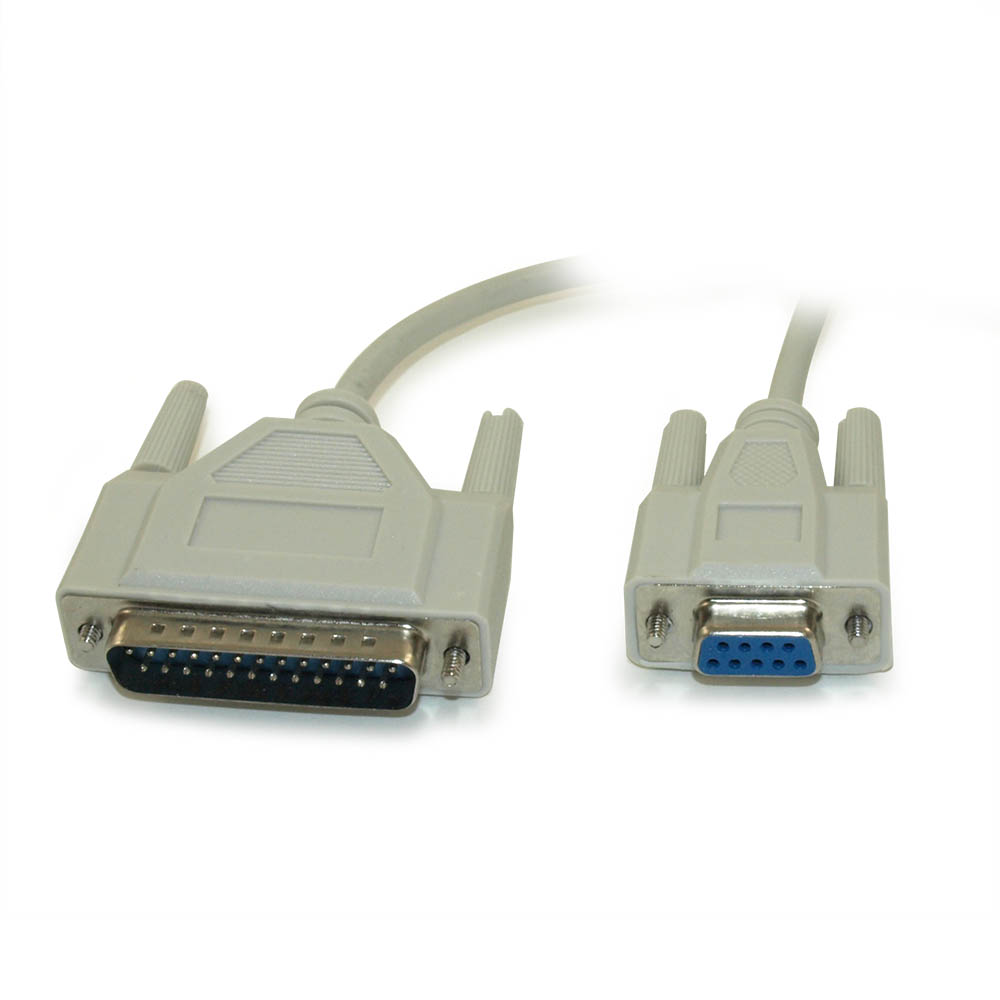

Serial DB9 FEMALE to DB25 RS232 Male Cable
|
|
|
|
|
|
|
Lengths Available: |
1ft, 6ft, 10ft, ea, |
|
Colors Available: |
|
|
Part Numbers this model: |
GC-9F25M-01, GC-9F25M-06, HA-9F25M-10, FE-9F25M-03, |
| |
|
|
Sales Category: |
Serial, Modem, & Parallel Printer Cables |
Wire Gauge (AWG): |
30 AWG |
|
Connector A: |
Serial DB9 (RS-232) Female |
Specification: |
|
|
Connector B: |
Serial DB9 (RS-232) Female |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
10 FT |
|
# Positions: |
9, 25 |
Shielding: |
Shielded |
|
Convert From/To: |
|
Type: |
DB9, DB25 |
|
| |
DB25 Male to DB9 Female serial cable is used to connect PC with DB9 COM port and device with DB25 serial port.
Specifications:- Fully shielded to prevent unwanted EMI/RFI interference
- Fully molded connectors with thumbscrews provide a quick and easy connection every time
- Connectors: DB9 Female to DB25 Male
- 30AWG Cabling, OD 5.0mm
- Pinout (9 to 25pin connectors): 1-8, 2-3, 3-2, 4-20, 5-7, 6-6, 7-4, 8-5, 9-22, G-G (Shell)
|
