| Connector A: | RCA/Phono Female |
| Connector B: | RCA/Phono Female |
|
Ship Weight:
|
0.67 lbs |
|
Warranty: |
1 Year |
|
Tariff Code: |
8525.50.30.35 |

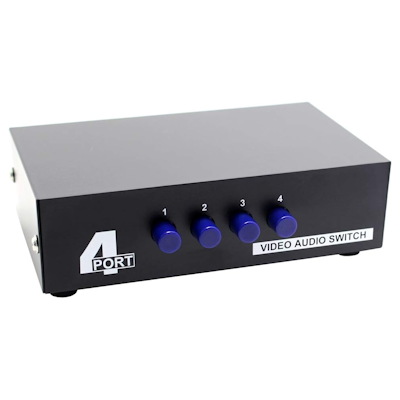

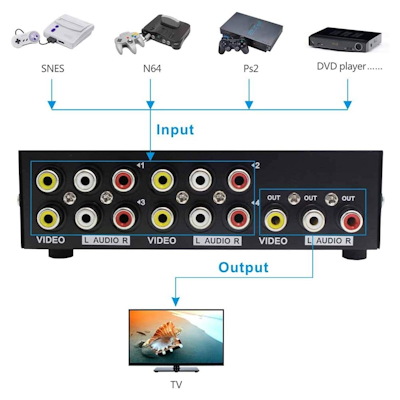

Panlong 4-Way AV Switch RCA Switcher 4 in 1 Out Composite Video L/R Stereo Audio Selector Box. The Panlong 4 In 1 Out RCA switch box lets you connect four composite video and stereo audio sources that have yellow-white-red RCA connectors, such as Wii, XBOX, DVD, PS2, Nintendo, etc. Simply push the button, you can switch back and forth between them without un-plugging/re-plugging cables. Can also be used an an "audio only" switcher.
The series of Panlong RCA switcher has no crosstalk, no noticeable loss in video or audio quality. It is a must for every retro enthusiast.
Specifications:- 4-way AV RCA Audio Video Switcher Selector for XBOX DVD PS2 PS3 Wii Cable Box to TV's yellow-white-red RCA connectors
- Mechanical design, simple push-button switching
- Metal enclosure, excellent stability and longevity
- Easy installation and operation, no extra power supply or software drive needed
- Support devices with A/V connection, provide clean video and audio
- Video: Input level Resistance: VS 0.8-1.0Vp-p/75Ohm, Output level Resistance: VS 0.8-1.0Vp-p/75Ohm, Bandwidth: 50Hz-5.5MHz
- Audio: Input level Resistance: 2V(RMS)/47KOhm, Output level Resistance: 2V(RMS)/1KOhm, Frequency: 10Hz-20KHz, 0db
- Metal shell, lightweight but sturdy
- Simple mechanical switch can last years
- Dimensions: 135Wx45HX90D mm
- No external power needed
