| Connector A: | Toslink Optical Audio Female |
| Connector B: | Toslink Optical Audio Female |
|
Ship Weight:
|
0.25 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

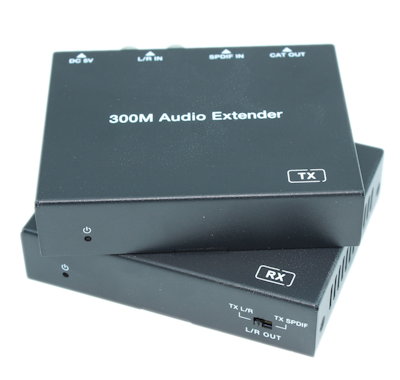

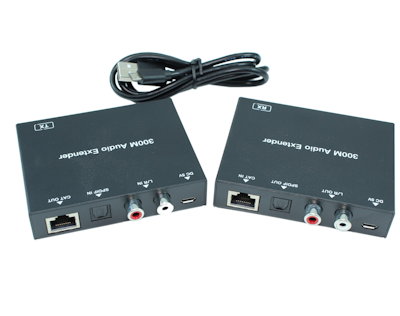

This Audio Extender can transmit digital optical and analog audio signals concurrently up to a distance of 300m/990ft (48kHz), 150m/495ft (96kHz) or 100m/330ft (192kHz) over a single CAT5E/6 cable. The digital optical audio is directly passed from transmitter to receiver. The analog audio output on receiver is selectable from the digital optical or the analog audio signal from transmitter. The extender supports bidirectional POC function. This is a fantastic plug and play solution for sending optical fiber and analog audio from an HDTV back to an amplifier, AVR or multi-room audio system which requires an analog stereo audio input signal.
Specifications- Extend OPTICAL and/or analog (left/right RCA) signals over a single CAT cable
- Distribute to 300 meters (1000ft)
- Sample Rates supported: 32kHz, 44.1kHz, 48kHz,96kHz, 176.4kHz and 192kHz up to 24-bit resolution
- Audio Formats: Optical: LPCM, DTS, Dolby Digital and Dolby Digital Plus; Analog: LPCM2.0
- Built-in DAC (digital to Analog conversion) for PCM 2.0 digital OR analog audio out.
- Bi-directional PoC to power extenders from either the transmitter or receiver
- Transmitter is POWERED, Receiver power NOT needed
- Powered by USB Cable (included) and USB charging block (NOT included)
