RCA Analog or Toslink Optical Audio via Network (CAT) Extender to 1000ft


 Lengths Available:
 Colors Available:
 Part Numbers this model: HD-C-EDA300S

 Sales Category: Optical Cables  Wire Gauge (AWG): Not Specific / Not Applicable
 Connector A: RCA/Phono Female  Specification:
 Connector B: RCA/Phono Female  Number Ports: N/A
 Export Tariff Code (HST): 8525503035  Transfer Rate:
 Feature / Style: Images Length/Size Shown: 300 M
# Positions: Shielding:
Convert From/To: Type:

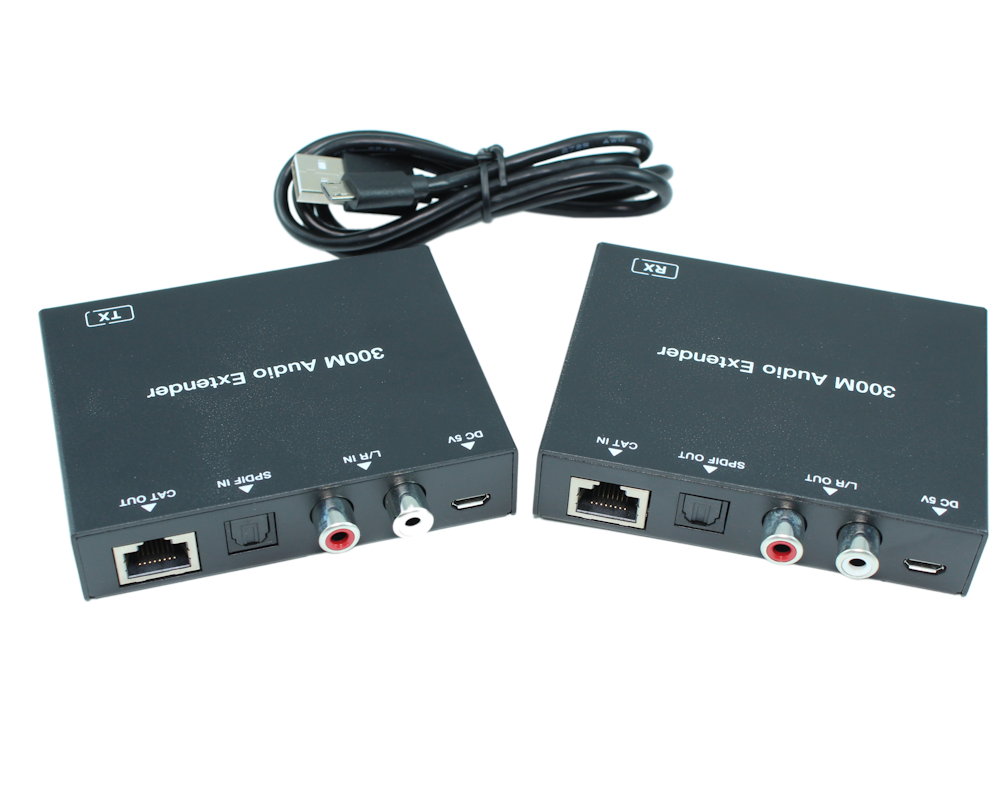

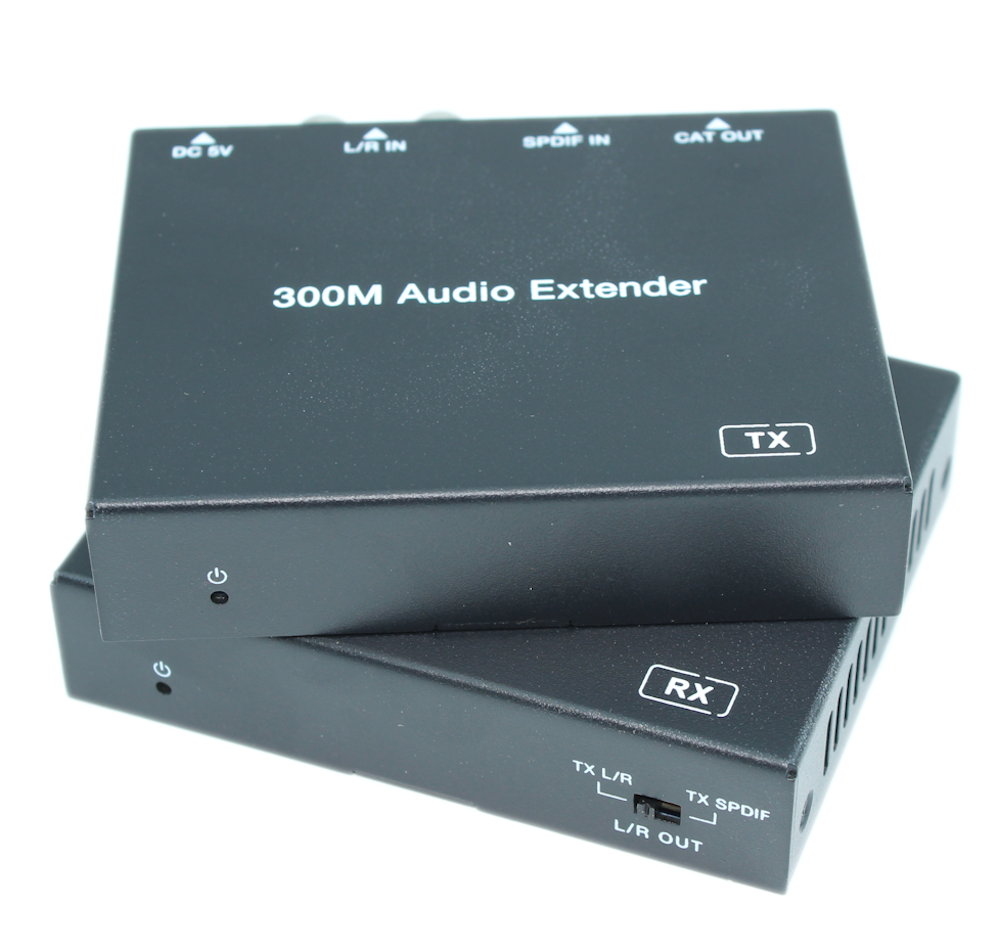

This Audio Extender can transmit digital optical and analog audio signals concurrently up to a distance of 300m (~1000ft) (48kHz), 150m/495ft (96kHz) or 100m/330ft (192kHz) over a single CAT5E/6 ethernet cable. The digital optical audio is directly passed from transmitter to receiver. The analog audio output on receiver is selectable from the digital optical or the analog audio signal from transmitter. The extender supports bidirectional POC function. This is a fantastic plug and play solution for sending toslink optical fiber and analog audio from an HDTV back to an amplifier, AVR or multi-room audio system which requires an analog stereo audio input signal.

Specifications
  • Extend OPTICAL and/or analog (left/right RCA) signals over a single CAT5E/6 ethernet cable
  • Distribute to 300 meters (~1000ft)
  • Sample Rates supported: 32kHz, 44.1kHz, 48kHz,96kHz, 176.4kHz and 192kHz up to 24-bit resolution
  • Audio Formats: Optical: LPCM, DTS, Dolby Digital and Dolby Digital Plus; Analog: LPCM2.0
  • Built-in DAC (digital to Analog conversion) for PCM 2.0 digital OR analog audio out.
  • Bi-directional PoC to power extenders from either the transmitter or receiver
  • Transmitter is POWERED, Receiver power NOT needed
  • Powered by USB Cable (included) and USB charging block (NOT included)

Note: Only the TRANSMITTING unit needs to be provided with power.
