| Connector A: | 3.5mm TRS Stereo Male |
| Connector B: | 3.5mm TRS Stereo Female |
| Color: | Black |
|
Ship Weight:
|
0.08 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

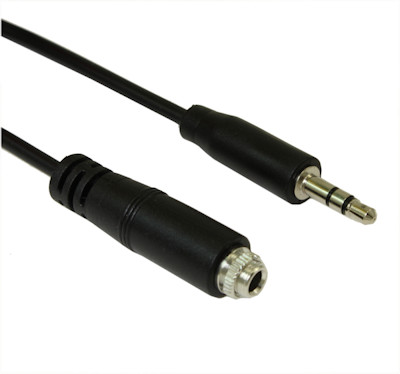

Specifically design for computer audio applications, it works with any PC sound card, speaker, headset, portable CD players, and microphone with a
3 conductor (2 black ring) 3.5mm connector. Both molded ends are shielded to protect against radio frequency and electromagnetic interference. This cable has a PVC jacket, molded ends, and inner hood soldered 360 degrees. This cable is ideal for general purchase audio. The FEMALE connector end can be PANEL-MOUNTED by loosing the ring-bolt from the threaded end
Specifications:
- Connector: 1 3.5mm (1/8'') Male, 1 3.5mm (1/8'') Female
- 3 Conductor, 28AWG CCS
- Cable Spec: 28AWG(7/0.12CCS)*3C
- Nickel Plated Connectors
- Insulation Type: PVC45Pa Black OD: 3.0mm
- Outer Diameter of Molded Connector: 10.3mm
- Outer Diameter of Cable: 3.00mm
- Outer Diameter of drill-hole needed: 6mm
- Outer Diameter of locking thumb-nut: 7.8mm
- Panel-Mountable (Max panel material width: 3mm)
- Lock nut thread: M6
- Cable Shielding: No
- Voltage: 300V DC, Insulation Resistance: 20M ohm
- Contact Resistance: 1 ohm
