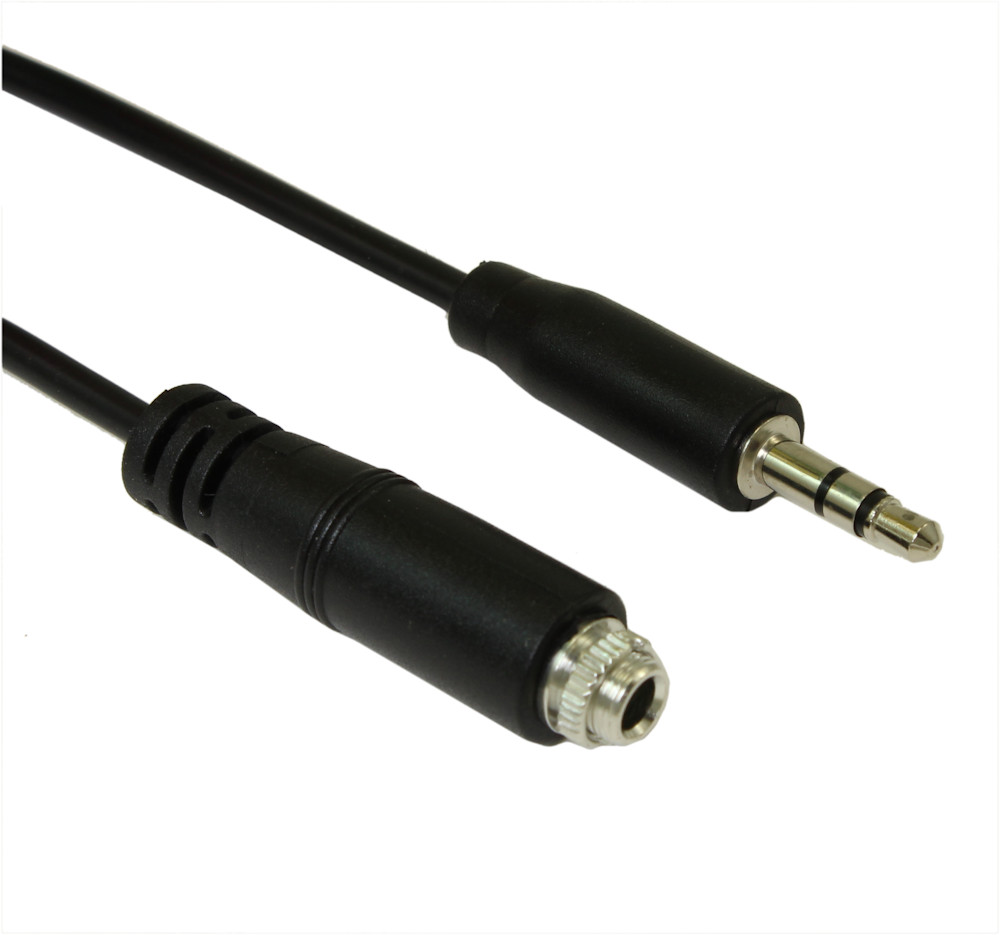

10inch 3.5mm Stereo TRS Male to Female Panel-Mount Extension Cable


 Lengths Available:
 Colors Available:
 Part Numbers this model: FE-3MMPM-10INMF

 Sales Category: 3.5MM & 2.5MM Cables and Adapters  Wire Gauge (AWG): 28 AWG
 Connector A: 3.5mm TRS Stereo Male  Specification:
 Connector B: 3.5mm TRS Stereo Male  Number Ports: N/A
 Export Tariff Code (HST): 8544422000  Transfer Rate:
 Feature / Style: Images Length/Size Shown: 10 IN
# Positions: Shielding:
Convert From/To: Type:

Specifically design for computer audio applications, it works with any PC sound card, speaker, headset, portable CD players, and microphone with a 3 conductor (2 black ring) 3.5mm connector. Both molded ends are shielded to protect against radio frequency and electromagnetic interference. This cable has a PVC jacket, molded ends, and inner hood soldered 360 degrees. This cable is ideal for general purchase audio. The FEMALE connector end can be PANEL-MOUNTED by loosing the ring-bolt from the threaded end

Specifications:
  • Connector: 1 3.5mm (1/8'') Male, 1 3.5mm (1/8'') Female
  • 3 Conductor, 28AWG CCS
  • Cable Spec: 28AWG(7/0.12CCS)*3C
  • Nickel Plated Connectors
  • Insulation Type: PVC45Pa Black OD: 3.0mm
  • Outer Diameter of Molded Connector: 10.3mm
  • Outer Diameter of Cable: 3.00mm
  • Outer Diameter of drill-hole needed: 6mm
  • Outer Diameter of locking thumb-nut: 7.8mm
  • Panel-Mountable (Max panel material width: 3mm)
  • Lock nut thread: M6
  • Cable Shielding: No
  • Voltage: 300V DC, Insulation Resistance: 20M ohm
  • Contact Resistance: 1 ohm
