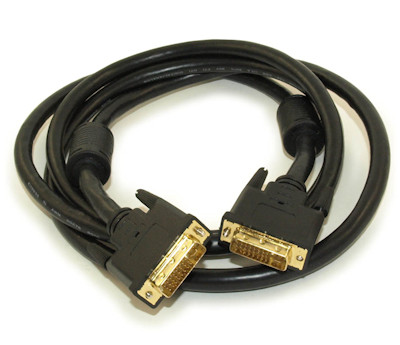

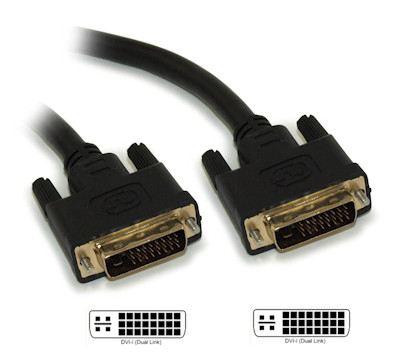

| Connector A: | DVI-I (Dual Link) Male |
| Connector B: | DVI-I (Dual Link) Male |
|
Ship Weight:
|
0.73 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |
Digital Visual Interface (DVI) is the standard interface for a high-performance connection between PCs and flat panel displays, digital CRT displays, projectors
Signal Type: DVI-I (integrated both DVI-D Dual Link and/or DVI-A analog)
Connector Finish: Gold Plated
Gauge/AWG: 28AWG
Pin Configuration 24 + 4 + 1 blade
Shielding level: Triple and EMI
Ferrite Cores: Yes
1080p support Yes
Bandwidth: Dual Link (Single Link also supported)
Maximum Resolution 2048 x 1536
Min Clock Freq. 21.76 Mhz, Max: 165 Mhz x 2
Max Thoroughput 7.4 Gbs
Pixels per cycle 2, Bits per Pixel 24
DDWG, HDCP, & RoHS Compliant
UL Certified: E119932, Style: 20276
DVI FAQ
The DVI connector usually contains pins to pass the DVI-native digital video signals. In the case of dual-link systems, additional pins are provided for the second set of data signals.
As well as digital signals, the DVI-I connector includes pins providing the same analog signals found on a VGA connector, allowing a VGA monitor to be connected with a simple plug adapter. This feature was included in order to make DVI universal, as it allows either type of monitor (analog or digital) to be operated from the same connector.
