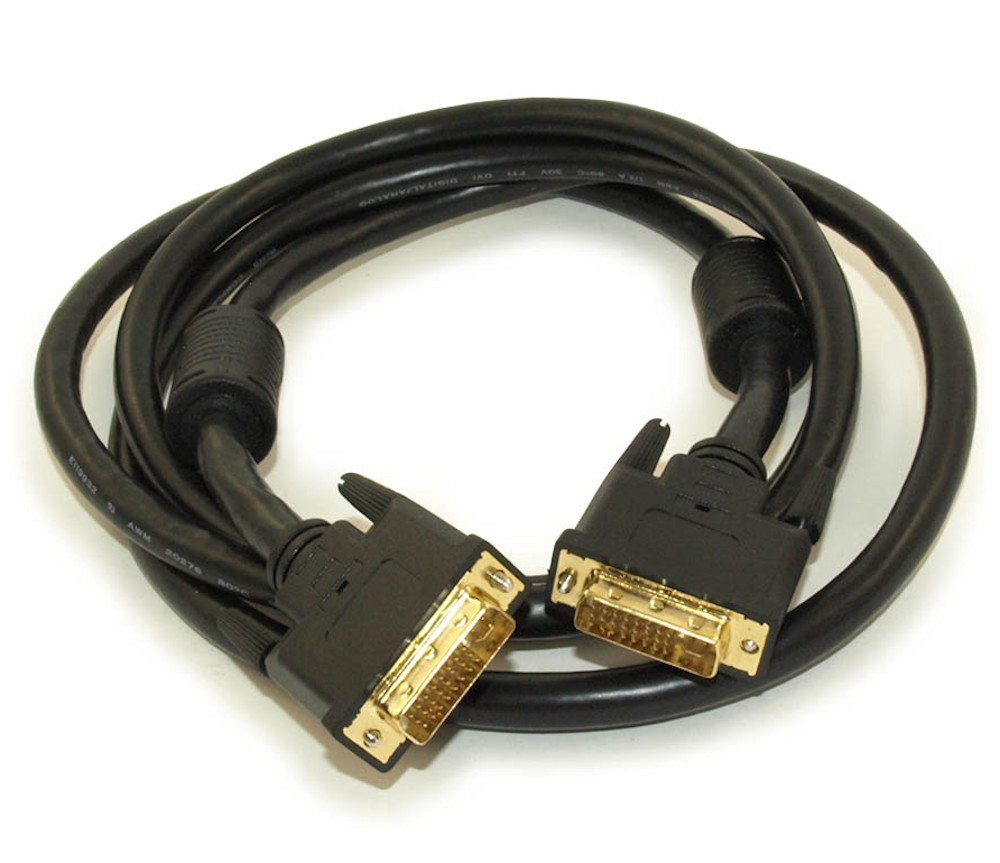

DVI-I Dual Link DIGITAL AND ANALOG (28 AWG) Gold Plated Cable

Lengths Available:	6ft, 10ft,
Colors Available:
Part Numbers this model:	BC-DVIIF-2MM, MR-DVIIF-3MM,

Sales Category:	DVI Cables	Wire Gauge (AWG):	28 AWG

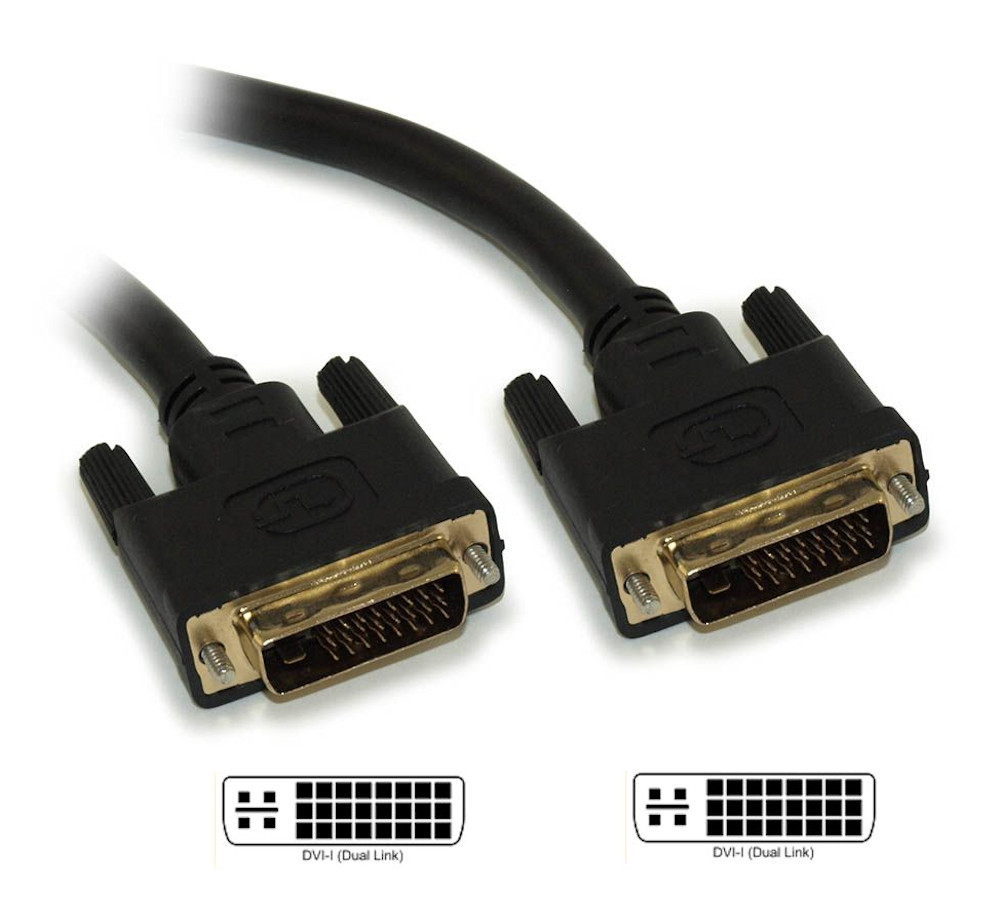

Connector A:	DVI-I (Dual Link) Male	Specification:
Connector B:	DVI-I (Dual Link) Male	Number Ports:	N/A
Export Tariff Code (HST):	8544422000	Transfer Rate:
Feature / Style:		Images Length/Size Shown:	6 FT
# Positions:		Shielding:	Shielded
Convert From/To:		Type:

Digital Visual Interface (DVI) is the standard interface for a high-performance connection between PCs and flat panel displays, digital CRT displays, projectors

Signal Type: DVI-I (integrated both DVI-D Dual Link and/or DVI-A analog)

Connector Finish: Gold Plated

Gauge/AWG: 28AWG

Pin Configuration 24 + 4 + 1 blade

Shielding level: Triple and EMI

Ferrite Cores: Yes

1080p support Yes

Bandwidth: Dual Link (Single Link also supported)

Maximum Resolution 2048 x 1536

Min Clock Freq. 21.76 Mhz, Max: 165 Mhz x 2

Max Thoroughput 7.4 Gbs

Pixels per cycle 2, Bits per Pixel 24

DDWG, HDCP, & RoHS Compliant

UL Certified: E119932, Style: 20276
DVI FAQ
The DVI connector usually contains pins to pass the DVI-native digital video signals. In the case of dual-link systems, additional pins are provided for the second set of data signals.
As well as digital signals, the DVI-I connector includes pins providing the same analog signals found on a VGA connector, allowing a VGA monitor to be connected with a simple plug adapter. This feature was included in order to make DVI universal, as it allows either type of monitor (analog or digital) to be operated from the same connector.
