| Connector A: | Fiber Optic LC Connector |
| Connector B: | Fiber Optic LC Connector |
| Color: | Green |
|
Ship Weight:
|
0.11 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

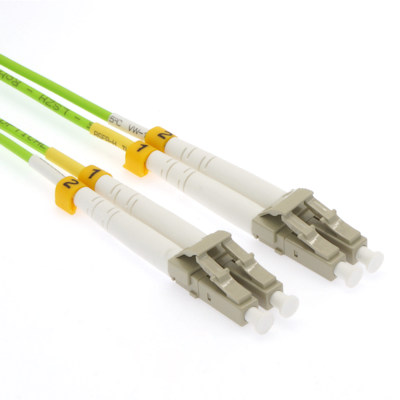

Used to connect patch panels and/or network devices that utilize duplex LC to LC style connectors and require OM5 50/125 multimode cabling. 100% tested. Test report included in each cable. Lime green jacket color. 1/2 mark ring
Features and Specifications:
- LC/LC (Lucient Connectors) Both Ends, OFNR Jacket
- Multi-Mode Duplex (M/M)
- OM5, supporting up to 40/100Gbps, Green Colored
- Operating Wavelength: 850/1300nm
- Cable Outer Diameter: 2.0mm
- Return/Insert Loss: 55 db/0.30 dB
- Ferrule Material/Diameter: Ceramic (zirconia), 1.25mm/2.5mm
- Nominal Diameter Core: 50/125 um
- 50/125 Micro fiber core (mm) and OD cable width with cladding
- Indicator rings for each identification at each end (A/B)
