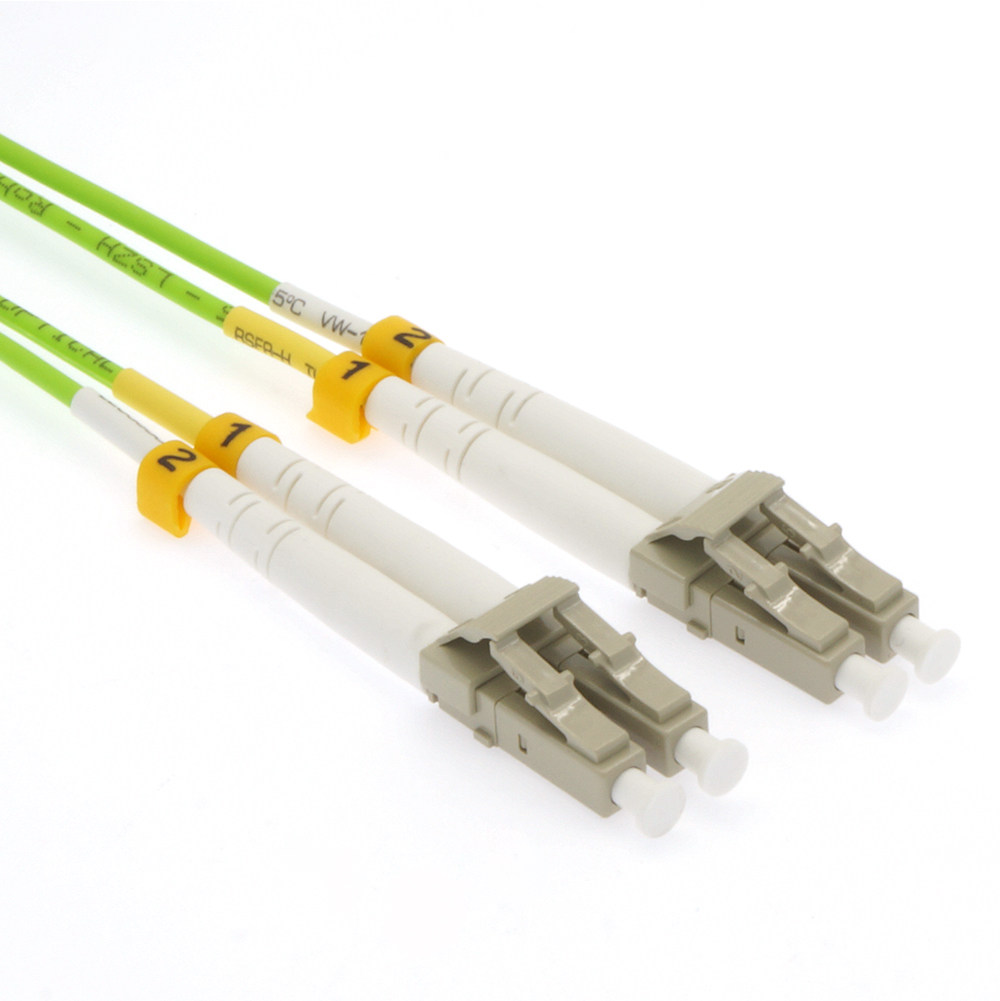

2 Meter LC/UPC-LC/UPC OM5 Multi-Mode Duplex OFNR 50/125 Fiber Optic Cable
|
|
|
|
|
|
|
Lengths Available: |
2m, 3m, |
|
Colors Available: |
|
|
Part Numbers this model: |
BE-105225, BE-105226, |
| |
|
|
Sales Category: |
Fiber Optic Jumpers |
Wire Gauge (AWG): |
Not Specific / Not Applicable |
|
Connector A: |
Fiber Optic LC Connector |
Specification: |
|
|
Connector B: |
Fiber Optic LC Connector |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
2 M |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
Multimode, Duplex, OM5 |
|
| |
Used to connect patch panels and/or network devices that utilize duplex LC to LC style connectors and require OM5 50/125 multimode cabling. 100% tested. Test report included in each cable. Lime green jacket color. 1/2 mark ring
Features and Specifications:
- LC/LC (Lucient Connectors) Both Ends, OFNR Jacket
- Multi-Mode Duplex (M/M)
- OM5, supporting up to 40/100Gbps, Green Colored
- Operating Wavelength: 850/1300nm
- Cable Outer Diameter: 2.0mm
- Return/Insert Loss: 55 db/0.30 dB
- Ferrule Material/Diameter: Ceramic (zirconia), 1.25mm/2.5mm
- Nominal Diameter Core: 50/125 um
- 50/125 Micro fiber core (mm) and OD cable width with cladding
- Indicator rings for each identification at each end (A/B)
|
