Ship Weight:
|
99.00 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

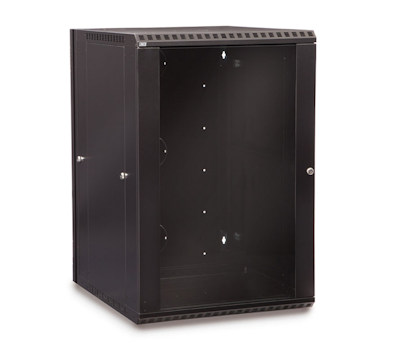

The LINIER(TM) Swing-Out Cabinets are designed to solve the everyday problems technicians have while installing and managing the immense amount of cabling that is all-too-common with datacom and telecom equipment. The included set of cage nut style rails fully adjust in 1inch increments to accommodate the various depths of equipment on the market. Additional rails are available for devices that require 4-point mounting. Easy to remove side panels provide more access for growing or changing cabling schemes, as well as offer the option for increased air flow to prevent equipment from overheating.

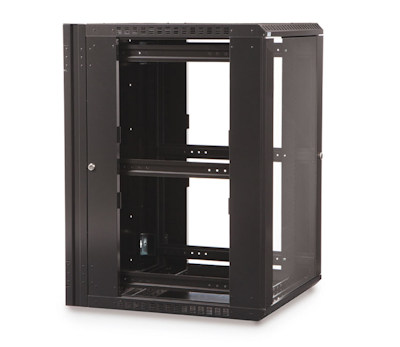

Lockable enclosure can be swung out 90 degrees from the back frame allowing access to the rear of installed equipment. This capability provides additional space and accessibility for terminating, installing, and managing cables. Tempered safety glass door can be removed or reversed to be left or right mounted, to accommodate your particular installation. The glass door allows you to monitor your network system. Strategically placed laser knockouts provide a plethora of locations to feed copper or fiber optic cabling into the cabinet, or to install an optional fan kit for temperature control.
Features- Includes one locking tempered glass door and one locking vented door.
- Removable locking side panels
- 22.5" depth
- 150 lb. weight capacity
- Depth: 26.64inches (Usable 22.5), Height: 35.21inches, Width: 23.5inches
- Includes two sets of adjustable cage nut style mounting rails
- Top includes removable laser knockouts
- 19" EIA compliant
- Made in the USA
- 5-Year Limited Warranty
