| Color: | Black |
|
Ship Weight:
|
12.28 lbs |
|
Warranty: |
1 Year |
|
Tariff Code: |
8302.50.00.00 |

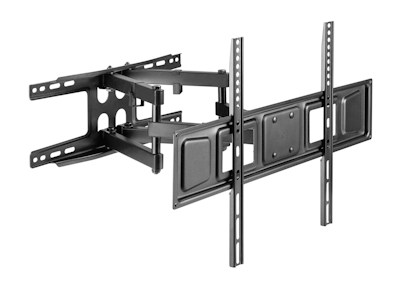

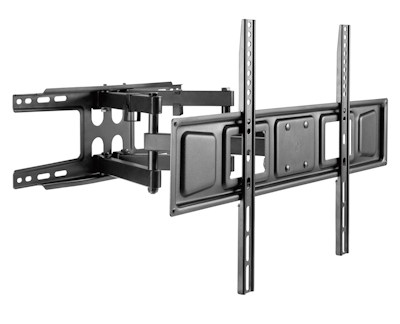

Adjustable Tilting down (15 degrees), Up (5 degrees) and Swivel left/right Wall Mount Bracket for LCD Plasma (Max 88Lbs, 37-80inch) - This is an angle adjustable wall bracket for LCD or Plasma TV's. This Flat Wall Mount supports most
any 37in to 80in LCD, LED, or and plasma TVs up to 88 lb weight that comply with VESA mounting standards. Discrete cable management hooks allow you to easily keep your cables out of view.
Compatibility:
- Will fit most mid to large-sized flat panel LED, Plasma and LCD TVs with mounting patterns up to VESA 600x400.
- Mounting holes on television should be 23.6" or less apart horizontally & 15.75" or less apart vertically
- Maximum weight capacity: 88lbs
Dimensions:
- Wall Back mount plate: 18.7W x 7.25H"
- Measurements are from edge to edge. Mounting points for bolts will be shorter.
Range of Motion:
- Tilt: 15 degrees down (variable) or 5 degrees up
- Swivel: full motion, left/right depending on TV size and location from wall
- Extension from wall: 2.4" to 18.4"
Design & Construction:
- Solid toughened steel construction
- Durable scratch resistant
- Black Finish
- Easy installation
Included in Box:
- Mount
- Mount Level built in to front plate for perfectly level mounting!
- Mounting template allowing for quick and easy installation
- Mounting hardware (Screws to go into back of TV & Fittings for brick and stud walls)
- Mount bolts included: (4) M5x14, (4) M6X14, (4) M6X30, (4) M8X30, (4) M8X3500
- User manual
IMPORTANT NOTE: There will be a 20% restocking fee for this product to be return if the box is opened, no exceptions
