| Connector A: | DVI-I (Dual Link) Female |
| Connector B: | DVI-D (Dual Link) Male |
|
Ship Weight:
|
0.13 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8536.69.40.10 |
Pinned for DVI-D (For DVI-D Dual or Single Link Digital) ONLY support. Will NOT support DVI-A (analog), or DVI-I (integrated) mode. Also can be used as a "port saver" for connections that must be repeatedly plugged an unplugged. 99% of DVI connections used today use the DIGITAL PINS of a DVI cable or computer port connector.

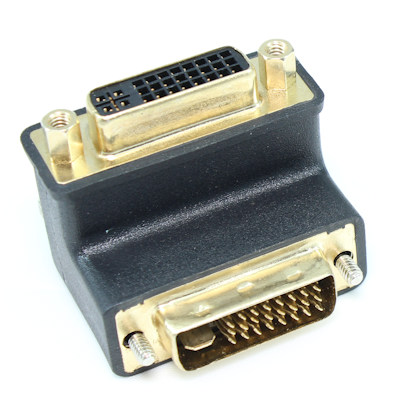

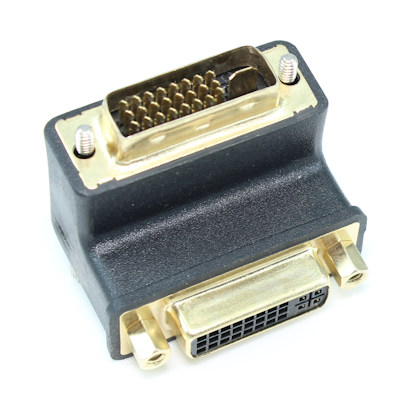

Specifications- This is a FULLY PINNED DVI-D Dual Link angle Adapter
- Connector 1: DVI-D 24 + blade MALE with Male Screw Connectors (4-pin surrounding blade are NOT on this adapter)
- Connector 2: DVI-I 24 + blade + 4 pins FEMALE with Female Connector Hex Bolts
- Supports ALL possible DIGITAL DVI connections - DVI-D Dual Link and DVI-D Single Link
- Note: The DVI Female connector shows the 4 analog pins at the blade location. This are NOT terminated, but the female connector CAN accept a cable with DVI 24+ blade + 4 pins for backwards compatibility
- Gold Plated connectors
