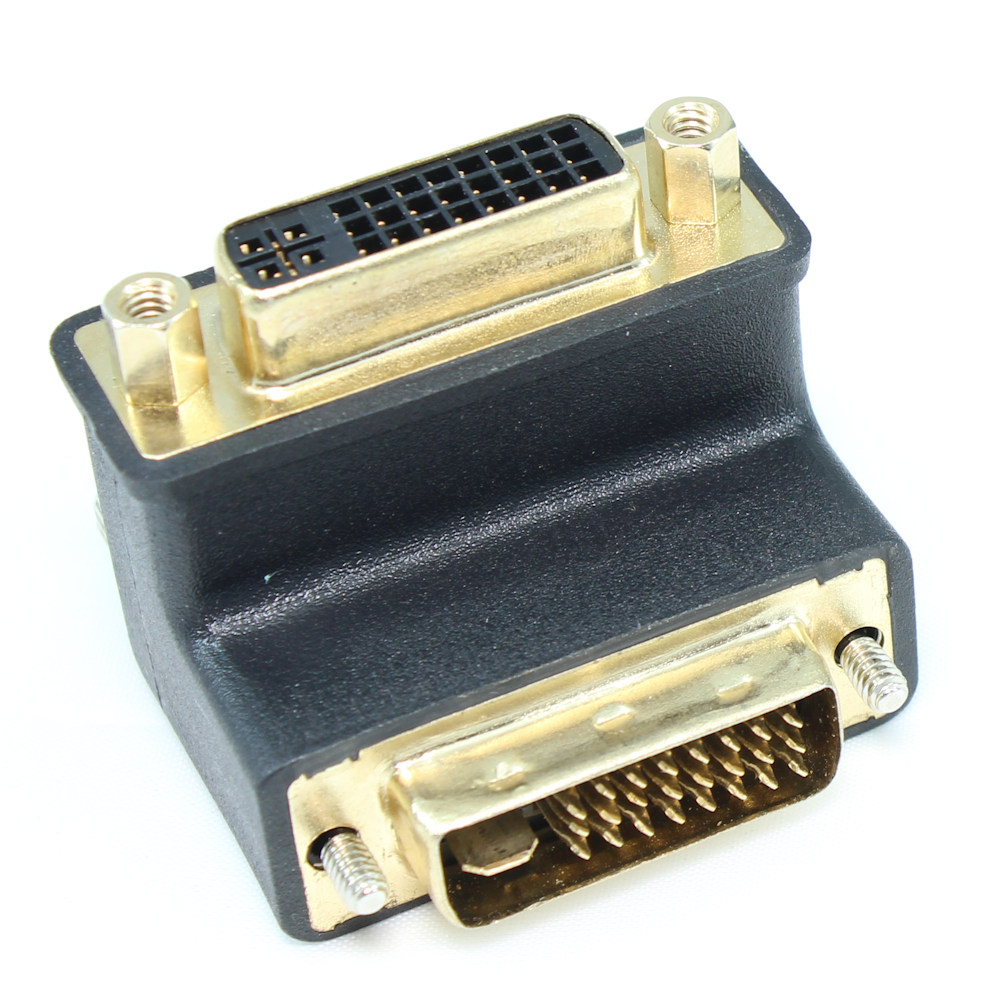

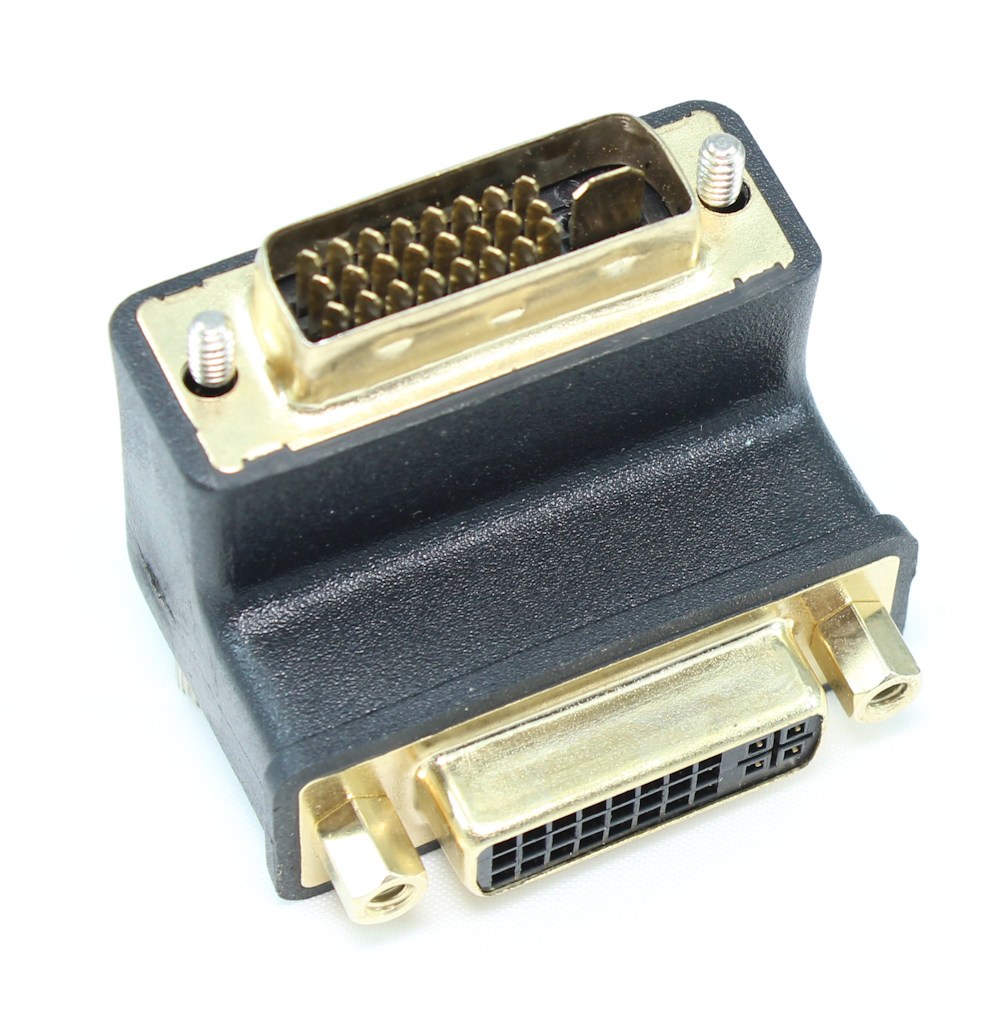

DVI-D Male to DVI-D Female Right Angle (90 degrees) Adapter
|
|
|
|
|
|
|
Lengths Available: |
|
|
Colors Available: |
|
|
Part Numbers this model: |
FE-ADT-427 |
| |
|
|
Sales Category: |
Adapters (All Types) |
Wire Gauge (AWG): |
Not Specific / Not Applicable |
|
Connector A: |
DVI-I (Dual Link) Female |
Specification: |
|
|
Connector B: |
DVI-D (Dual Link) Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8536694010 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
EA |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
|
|
| |
Pinned for DVI-D (For DVI-D Dual or Single Link Digital) ONLY support. Will NOT support DVI-A (analog), or DVI-I (integrated) mode. Also can be used as a "port saver" for connections that must be repeatedly plugged an unplugged. 99% of DVI connections used today use the DIGITAL PINS of a DVI cable or computer port connector.
Specifications- This is a FULLY PINNED DVI-D Dual Link angle Adapter
- Connector 1: DVI-D 24 + blade MALE with Male Screw Connectors (4-pin surrounding blade are NOT on this adapter)
- Connector 2: DVI-I 24 + blade + 4 pins FEMALE with Female Connector Hex Bolts
- Supports ALL possible DIGITAL DVI connections - DVI-D Dual Link and DVI-D Single Link
- Note: The DVI Female connector shows the 4 analog pins at the blade location. This are NOT terminated, but the female connector CAN accept a cable with DVI 24+ blade + 4 pins for backwards compatibility
- Gold Plated connectors
|
