| Color: | Black |
|
Ship Weight:
|
11.40 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

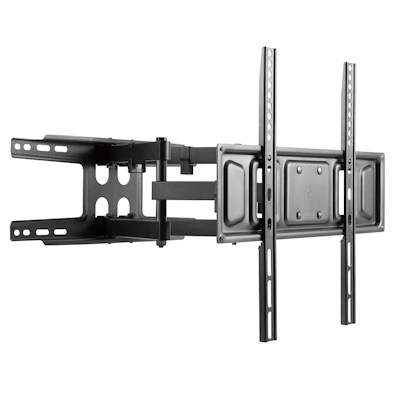

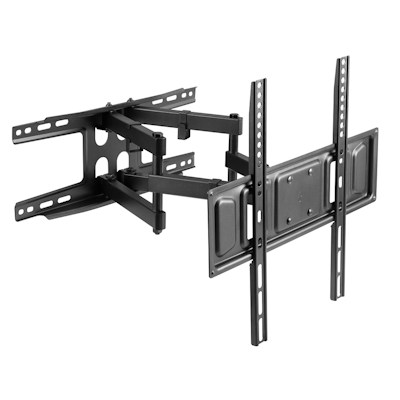

Adjustable Tilting up/down (+5 degrees UP, -15 degrees DOWN) and Swivel left/right (+-60 degrees side to side) Wall Mount Bracket for LCD Plasma (Max 88Lbs, 32-70inch) - This is an angle adjustable wall bracket for any larger flat panel LCD, LED, or Plasma TV. The REAR mounting plate is approx 18.7''W x 7.25''H. This mount can be single stud mounted (see note below).
Will fit most small to mid-sized flat panel plasma and LCD TVs with mounting patterns up to VESA 400x400.
Mounting holes on television should be 15.9'' or less apart horizontally & 15.9'' or less apart vertically
Maximum weight capacity: 88lbs
Wall Back mount plate:18.7" W x 7.25'' H
TV Front mount plate: 17.9" W x 5.3" H
Tilt: Up to 5 degrees upward & 15 degrees down (variable)
Swivel: -60 to +60 degree rotation (left/right depending on TV size and location from wall)
Mount continues to allow for left/right swivel after mounting, with tension controllable via supplied hex tool
Extension from wall: 2.4"'' Min, 18.4'' Max.
Solid toughened steel construction
Durable scratch resistant
Black Finish
Easy installation
Mounting hardware (Screws to go into back of TV & Fittings for brick and stud walls)
Metric Mounts Bolts Supplied: M5x14, M6x14, M6x30, M8x30, M8x50, spacers, washers, and 4 Lag Bolts supplied
