| Connector A: | HDMI Standard Type A Male |
| Connector B: | HDMI Standard Type A Male |
|
Ship Weight:
|
0.73 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |
Connect any Blu-Ray player, Satellite Box, Cable Box, DVD Player, or ANY device accepting the standard HDMI connector. All our HDMI cables are manufactured to specific HDMI LLC standards and have passed stringent ATC testing requirements (see our certificates below).
Features and Description:
- 100% Backward compatible with all previous HDMI versions

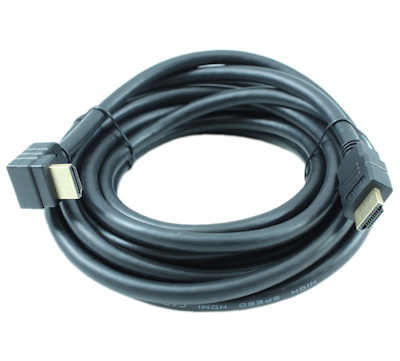

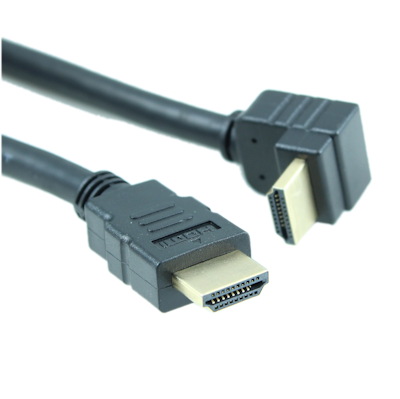

- One connector end at 90 degrees for hard to reach places. Other end at standard 180 degrees (Straight)
- 4K x 2K Support - Supports ANY resolution to 4K (4096x2160)
- HDMI Ethernet Channel - Delivers Ethernet data interconnectivity to compatible devices through the HDMI port so you don't need extra cables to get extended features
- Audio Return Channel- Allows the HDMI connection between a television and A/V receiver to transmit audio two ways, both upstream and downstream. This eliminates the need for a separate audio cable and ensures you maintain the high digital audio quality of HDMI
- 3D Support
- 4K@60Hz Resolution Support
Cable Specifications:
- Wire Gauge: 30AWG
- End Connector Dimension (Straight End): 20.1mm W x 10.7mm H, Cable Thickness: 7.5mm
- Standard Speed bandwidth: 18 GigaBit/sec (Tested and Certified to ATC Specification)
- Gold Plated 1u (All 19 wires and Ground Shroud)
- 19 pin, Male to Male, Type A Connector
- Silver-tinned PURE copper wire for maximum conductivity - without ANY harmful lead (RoHS)
- Triple Shielded, EMI (Foil, braid, foil
- UL / CSA listed (UL File #: E119932, Style: 20276), Max Temperature: 80 C
- Fully HDMI LLC / ATC Certified (see certificates below)
NOTE: Carefully examine your existing HDMI port's orientation to make sure this 90 degree cable meets your needs. Typically, this style of HDMI cable is normally suitable to be used behind an HDTV, making the cable immediately travel downwards.
