| Connector A: | HDMI Standard Type A Male |
| Connector B: | HDMI Standard Type A Male |
| Color: | Black |
|
Ship Weight:
|
0.91 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

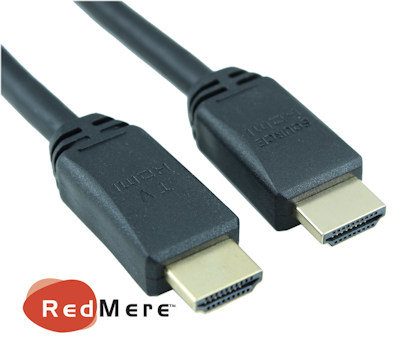

Important Installation Note: This specialized cable MUST be installed in the correct direction. This cable is uni-directional. It will NOT function properly if not installed in this manner. Some cables will have ends labelled SOURCE or INPUT which is connected to the SOURCE video equipment (or receiver if source equipment attached to an HDMI pass-thru receiver). The other end will be labelled SINK or OUTPUT or TV which connects to the TV equipment. If unsuccessful when first connected, please check both ends in case needing to reverse the installation. |
Connect any Blu-Ray player, Satellite Box, Cable Box, DVD Player, Media Player, or ANY device accepting the standard HDMI connector. All our HDMI cables are manufactured to specific HDMI LLC standards and have passed stringent HDMI version 2.0 ATC testing requirements. These HIGH SPEED cables are ideal when used in combination with switches, splitters, wall-plates, as a partial HDMI segment when connecting devices to a receiver - and then from the receiver to your HDTV - when there is a need to
minimize any resistance, and are an ideal solution for 4Kx2K devices
Supports the following features that are included in the HDMI Version 2.0 specification:
- 4K x 2K Support - Supports ANY resolution to 4K (4096x2160) at 60Hz
- HDMI Ethernet Channel- (HEC) Delivers Ethernet data interconnectivity to compatible devices through the HDMI port so you don't need extra cables to get extended features
- Audio Return Channel -(ARC) Allows the HDMI connection between a television and A/V receiver to transmit audio two ways, both upstream and downstream.
- Full 3D Support - If your source and receiving device support 3D, this cable will!
- 18 Gbps Total Bandwidth (independently lab tested by Agilent Technologies to the HDMI v2.0 specification
- Support for ANY TV refresh rates (such as 120Hz/240/480/600Hz), HDCP 1.2 and 2.2 Support
Cable Specifications:
- Uses proven Redmere/Spectra7 HT8181 Integrated Embedded Chipset at Display End of HDMI connector
- Wire Gauge: 28 AWG
- Gold Plated 1u (All 19 wires and Ground Shroud)
- Silver-plated (5u) PURE copper wire for maximum conductivity WITHOUT any harmful lead (RoHS)
- Copper Foil under-mold shielding to virtually eliminate any EMS interference
- 19 pin, Male to Male, Type A Connector, Triple Shielded, EMI (Foil, braid, foil)
- No bulky, unnecessary ferrites cores
- UL / CSA listed (UL File #: E329703, Style: 20276), Max Temperature: 80 C
