| Connector A: | RJ45 Ethernet Female |
| Color: | Gray |
|
Ship Weight:
|
0.03 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

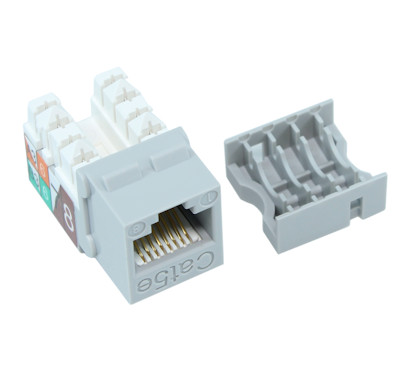

Cat.5E RJ-45 keystone jack is 8-position 8-conductor (8P8C) and designed for computer networking. It is engineered to provide superior performance and reliability, supporting up to Gigabit Ethernet applications. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA/EIA Category 5e performance standards. RJ45 keystone jack uses 50 micron gold plated contact pin.
Features
CAT 5e rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
PCB technology provides maximum performance and superior signal quality
Terminate with 110 punch down tool

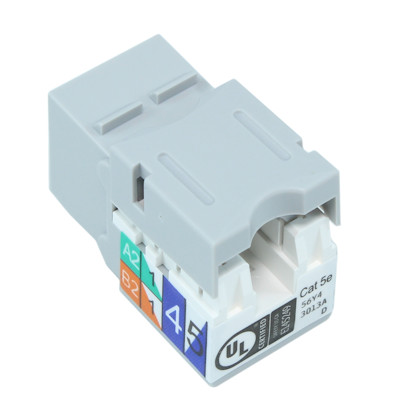

4 x 4 termination layout
Includes an integrated TIA-568A/B color wiring diagram
Backwards compatible to all lower rated category components
Compatible with all wall-plates, surface mount boxes, and blank patch panels
Works with all Netware Ethernet patch cables
Termination cap included
Individually packaged
UL listed
