| Connector A: | 3.5mm TS Mono Male |
| Connector B: | 3.5mm TS Mono Female |
| Color: | Black |
|
Ship Weight:
|
0.13 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

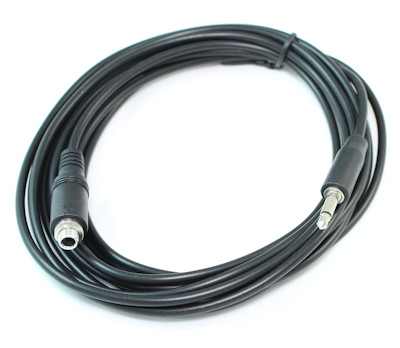

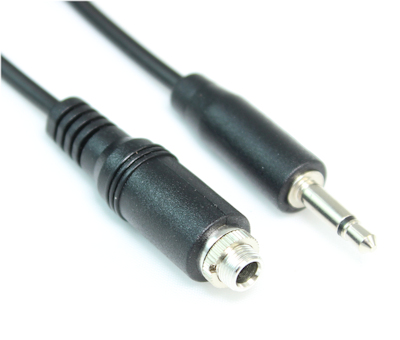

Specifically design for computer audio applications, it works with any PC sound card, speaker, headset, portable CD players, and microphone with a
2 conductor (1 black ring) 3.5mm MONO (1 channel) connector. Both molded ends are shielded to protect against radio frequency and electromagnetic interference. This cable has a PVC jacket, molded ends, and inner hood soldered 360 degrees. This cable is ideal for general purchase audio. The FEMALE connector end can be PANEL-MOUNTED by loosing the ring-bolt from the threaded end
Specifications:
- Connector: 1 3.5mm (1/8'') Male, 1 3.5mm (1/8'') Female
- Outer Diameter of Cable: 3.00mm
- 2 Conductor MONO TS, 28AWG CCS
- Nickel Plated Connectors
- Insulation Type: PVC 1.00mm
- Outer Diameter of Molded Connector: 10.3mm
- Cable Shielding: No
- Panel-Mountable (Max panel material width: 3mm)
- Ferrite Cores: No
