| Connector A: | 3.5mm TRRS 4 Conductor Male |
| Connector B: | 3.5mm TRRS 4 Conductor Male |
| Color: | Black |
|
Ship Weight:
|
0.08 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

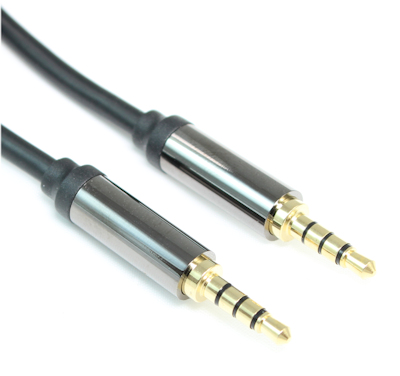

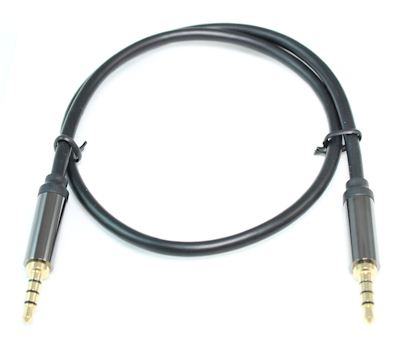

Connects stereo audio & microphone devices requiring 4 conductors (left and right audio and microphone plus ground). This PREMIUM cable MAY also be suitable for left/right audio, 1 video (composite) and ground. This cable has a PVC jacket, metal shell ends with strain relief, and inner hood soldered 360 degrees This PREMIUM SHIELDED cable to protect against electron-magnetic outside interference, has gold plated end connectors, shielded copper (CU) stranded 24AWG cabling, and metal shell connectors designed to deliver PREMIUM AUDIO and MICROPHONE or VIDEO
Specifications:
- Connectors: 3.5mm (1/8") Male to Male Conductor TRRS
- Outer Diameter of Cable: 4.00mm
- Outer Diameter of Metal Shell: 8.4mm
- 4 Conductor, 24AWG Copper (CU)
- Gold Plated Connectors
- End to End shielding (Braided/Foil)
- Insulation Type: PVC 1.00mm
- Cable Spec: 24AWG 7/0.2BC*3C+AL+32/0.1BC OD:3.5MM
- RoHS-3 Compliant
