SHOP CATEGORIES: HDMI Splitters / Distribution • 4 Port HDMI Amplified Splitter (Video/Audio) 4Kx2K @60Hz / 4:4:4 / HDCP2.2

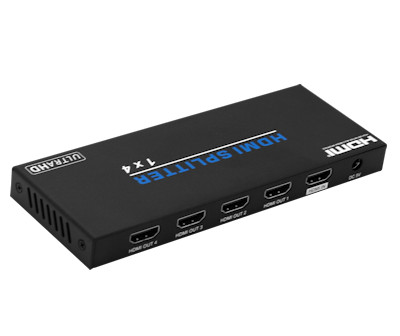

4 Port HDMI Amplified Splitter (Video/Audio) 4Kx2K @60Hz / 4:4:4 / HDCP2.2

18 reviews

4 Port HDMI Amplified Splitter (Video/Audio) 4Kx2K @60Hz / 4:4:4 / HDCP2.2

Price: $43.41 each

HD-V-B14IH

QUANTITY: In Stock

REQUEST QUOTE OR CUSTOMIZATION

PRODUCT DATASHEET

Qty Discount Pricing
2 - 5	6 - 10	11 - 30	31 - 50	51 - 100	101 - 200	201+
$42.11	$41.33	$40.37	$39.81	$39.29	$38.85	$38.63

Connector A:

HDMI Standard Type A Female

Connector B:

HDMI Standard Type A Female

Size:

4 PORT

4 PORT

Free Shipping on Orders $100+ for qualifying products,
Learn More.

Add to Wishlist

Share via Email

Share on Facebook

Share on Twitter

Connector A:	HDMI Standard Type A Female
Connector B:	HDMI Standard Type A Female
Ship Weight:	1.26 lbs
Warranty:	1 Year
Tariff Code:	8525.50.30.35

1x4 HDMI 18Gbps Splitter is an advanced solution for splitting a single HDMI signal to 4 HDMI displays. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz 4:4:4 and is capable of receiving and transmitting up to 18Gbps of bandwidth with no data loss. Supporting the latest features you can be assured of reliable and high quality HDMI distribution.

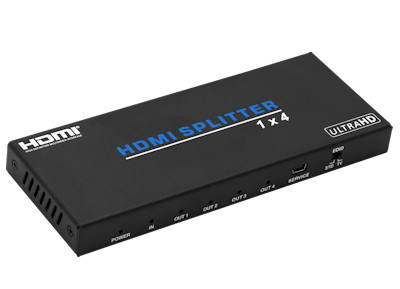

Tech Note: This device has some basic EDID (Extended Display Identification Data) control that operates in two modes via a switch on the front panel. In the STD position, the splitter will use its internal EDID information to set the source input to 1080p w/ 2 channel stereo audio, all connected TVs, no matter their resolution capabilities, will only receive 1080p from the input. In the TV position, the splitter will read the EDID information from the TV connected to HDMI Out 1 and if it reads a 4k resolution the source will be set to that resolution. If it doesn't sense a 4k resolution on HDMI Out 1, the device will set the source to the highest common resolution between all outputs.

Features and Specifications:
HDMI 2.0b, HDCP 2.2 compliant

1 HDMI Female Input port, 4 HDMI Female Output ports

Supports video format up to 4K2K@60Hz with 8 bit RGB/YCBCR 4:4:4/YCBCR 4:2:2

Support 3D frame sequential video format up to 1080p@60;

Supports 3D frame sequential video format up to 4K2K@30Hz

Supports high resolution VESA mode video format up to QSXGA@60Hz

Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

Supports smart EDID control

Compact design for an easy and flexible installation

Power Supply: 5V, 1A DC included

Video Bandwidth: 600Mhz/18Gbps

Output Video Resolutions Supported: 480i to 1080P 50/60Hz, 4Kx2K@24/30, 4Kx2K@60Hz

Certifications: CE/FCC/UL

Dimensions: WxDxH 63mm x 163mm x 16mm

Chassis/Case Material: Metal, Black

Operating Temp: 0C to 40C (32F - 104F)

Need a LARGE quantity or customization? [REQUEST QUOTE or CUSTOMIZATION]

Product Reviewed 18 times. Only most recent 100 shown

Rating Stars Reviewer Date

Ted B B From Clarion, IA 01/02/25

J M From RARITAN, NJ 12/02/24

Of all of the HDMI splitters I researched, this is the ONLY one that truly splits the signal synchronously to the four ports. Other "4 port" splitters will only split the signal to two ports synchronously, and then additional splitters must be purchased to split the signal four times (that would require three of the other splitters). After being forced to "upgrade" the box from (company name withheld), the only way I could connect all three televisions was to get a true 4 port splitter. The wonderful information on this site also stated the maximum cable length from the splitter to the output device; very useful information to have to prevent failures which would have been impossible to diagnose because no other site selling splitters has this information.

Richard L From St Louis, MO 02/28/24

jon w From Conway, AR 01/24/24

Split hdmi cable into 4 to stream cameras on different monitors

Paul G From Marietta, GA 11/02/23

Running three TVs from cable box through splitter. Fourth output not used.

CHIRS B From WASHINGTON, UT 01/29/23

USED FOR OUTHER TV'S IN THE HOUSE WORKS GREAT....

Charles G From Whiteford, MD 03/24/22

Warren T From LA, CA 03/23/22

Eddie V From Houston, TX 02/16/22

Eddie V From Houston, TX 10/20/21

ussed in projector setup.

Markell H From West Plains, MO 10/15/21

Thanks

Ronald N From Metairie, LA 07/29/21

James H From Ellenton, FL 05/05/21

Richard H From Getzville, NY 03/10/21

Using for 2 more tv's

David L From Grove, OK 12/21/20

david m From Colorado Springs, CO 08/28/19

use this to split my connection to 2 projectors and 1 TV, was having connection issues and this is built for longer HDMI runs.

Don P From Plainville, MA 10/03/18

Terrific quality, service and prices!!

DENNIS F From MARYSVILLE, WA 06/21/18
