| Connector A: | RJ45 Ethernet Male |
| Connector B: | RJ45 Ethernet Male |
| Color: | Blue |
|
Ship Weight:
|
2.28 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |
The latest standard from the TIA for enhanced performance standards for twisted pair cable systems was defined in February 2002 in ANSI/TIA/EIA-568-B.2-10. CATEGORY 7 is defined at frequencies up to 600 MHz, supporting device speeds up to 10Gbps

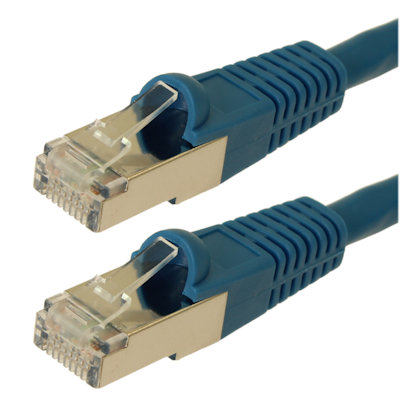

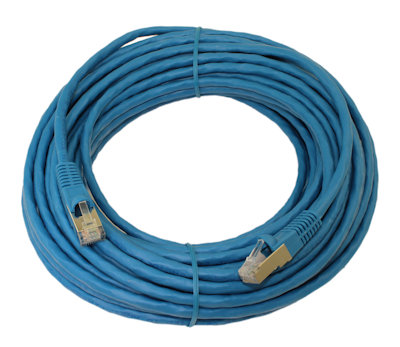

Connects any CAT7, CAT6A (or CAT5E, CAT6) application such as computer to hub, patch panel or wall jack. This 600MHz CAT7 PVC stranded patch cord meets TIA/EIA-568-B-2-10 class EA ISO/IEC 11801, CENELEC EN 50173 and IEEE802.3an specifications, and support all CAT6A and other high speed applications. It has stranded wires for added cable flexibility. The individual twisted pair cables are shielded, AND the cable itself (as a whole) is FOIL SHIELDED with drain wire.
Technical Specifications:- Performance conforms to proposed Cat.7 Class F standards (ANSI/TIA-568-B.2-1)
- 26AWG stranded copper wire x 4 pairs
- UL listed and cUL Listed
- RoHS compliant
- Double shielded: Each pair foil shielded / 4 pair braid shielded
- 50 micron gold plated RJ45 shielded plug
Suitable for 10Gbase-T networks
- Molded shielded snugless boot
