| Connector A: | 3.5mm TRS Stereo Male |
| Connector B: | 3.5mm TRS Stereo Female |
| Color: | Black |
|
Ship Weight:
|
0.05 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

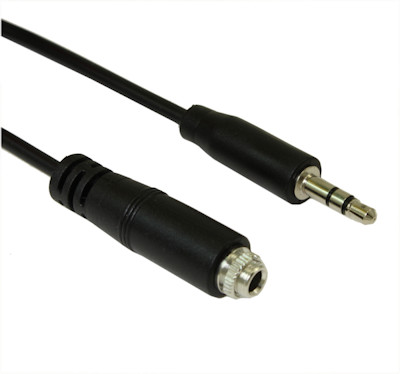

Specifically design for computer audio applications, it works with any PC sound card, speaker, headset, portable CD players, and microphone with a
3 conductor (2 black ring) 3.5mm connector. Both molded ends are shielded to protect against radio frequency and electromagnetic interference. This cable has a PVC jacket, molded ends, and inner hood soldered 360 degrees. This cable is ideal for general purchase audio. The FEMALE connector end can be PANEL-MOUNTED by loosing the ring-bolt from the threaded end
Specifications:
- Connector: 1 3.5mm (1/8'') Male, 1 3.5mm (1/8'') Female
- 3 Conductor, 28AWG CCS
- Cable Spec: 28AWG(7/0.12CCS)*3C
- Nickel Plated Connectors
- Insulation Type: PVC45Pa Black OD: 3.0mm
- Outer Diameter of Molded Connector: 10.3mm
- Outer Diameter of Cable: 3.00mm
- Outer Diameter of drill-hole needed: 6mm
- Outer Diameter of locking thumb-nut: 7.8mm
- Standard panel material thickness: 2.8mm*
- Threaded Post Length: 4.6mm
- Nut Thickness: 1.8mm
- Lock nut thread: M6
- Cable Shielding: No
- Voltage: 300V DC, Insulation Resistance: 20M ohm
- Contact Resistance: 1 ohm
* - Maximum panel material thickness is measured with the nut attached and flush with the end of the threaded post. The material thickness can be up to approx 3.3mm with the nut still remaining threaded to post.
