| Connector A: | BNC Male |
| Connector B: | BNC Male |
| Color: | Black |
|
Ship Weight:
|
1.65 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

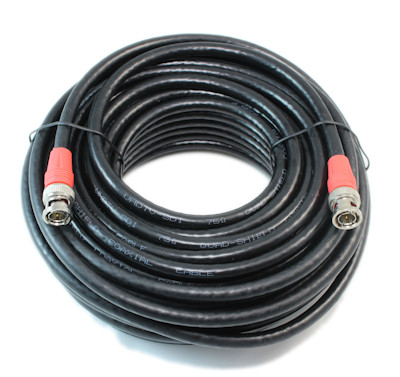

This specialized BNC cable meets the 12G-SDI (Serial Digital Interface) standards to support 12 Gbps, and maximum resolutions to 4Kx2K (2160P30 YUV 4:4:4) at 60Hz. Higher resolutions MAY be possible with suitable hardware compression using your equipment. The 12G-SDI standard is 100% backward compatible with the SD-SDI, ED-SDI, HD-SDI, 3G-SDI, and 6G-SDI specifications (SMPTE ST-2082, 259M, 344M, 292M, 373M, 424M, and the 6G-SDI standard of SMPTE ST-2081), but supports the faster 12Gbps speed needed for tomorrows 4Kx2K video/audio applications. Using 12G-SDI cabling instead of 6G, HD-SDI, or 3G-SDI provides the future-proofing you need!
Specifications- Meets SMPTE ST-2082 12G-SDI Standards
- Supports to 12 Gbps or better
- Supports: 1080P (All formats to YUV 4:4:4), 10/12-bit 4Kx2K RAW, 10-bit 4Kx2K/60Hz YUV 4:4:4
- Cable Spec: RG6/U (Solid PURE Copper) 18AWG, QUAD Shielded
- Up to 4.5Ghz bandwidth

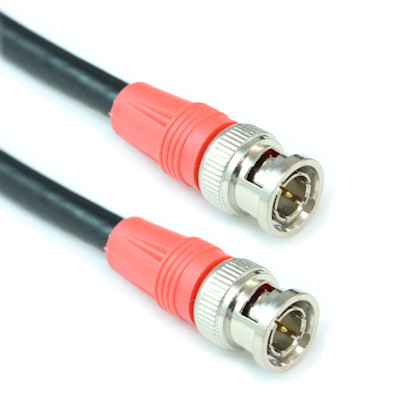

- Gold plated center connecting pin, nickel plated outer BNC ground connector
- Professional quality BNC connector with fully-wrapped shielding end-to-end
- Color: Black, with Red PVC molded end connectors
- 75 Ohm Connectors
