| Color: | Black |
|
Ship Weight:
|
6.46 lbs |
|
Warranty: |
1 Year |
|
Tariff Code: |
8302.50.00.00 |

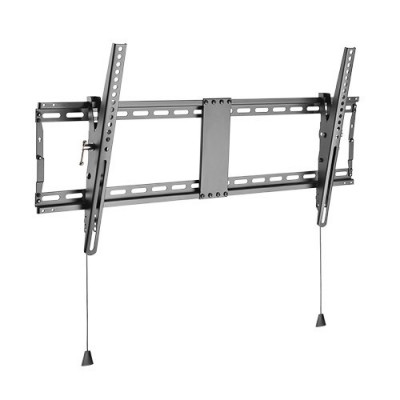

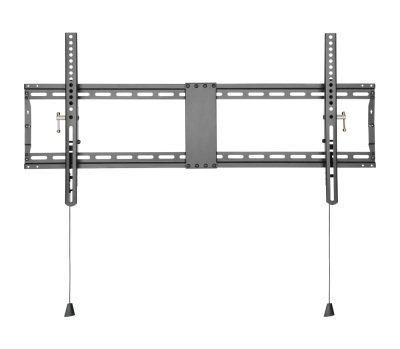

LP59-48T is a tilting TV mount that can hold your large TVs up to 90in size and 70kg/154lbs in weight firmly. The foldable design reduces shipping cost while maximizing shelf space. For better safety and security, its anti-theft design provides great protection. This mount comes with a quality steel knob for firmer grip and open wall plate access for wiring. Minimalist design-yet with solid holding power.
Tool-less tilt allows for effortless positioning, provides increased ventilation and easier access to wires. The folding design saves space (keeping the screen and arm out of the way when not in use). Included is anti-theft locking hole for additional security preventing any unwanted removal (extra padlock required, not included). Automatic Spring Locks with Quick Release Cords prevents TV from removal.
Compatibility
Will fit most large-sized flat panel LCD, LED, or plasma TVs with mounting patterns up to VESA 800x400.
Mounting holes on television should be 32.5" or less apart horizontally & 15.75" or less apart vertically.
Maximum weight capacity: 154lbs/70Kg
Dimensions
Wall plate: 35"W x 17"H
Measurements are from edge to edge. Mounting points for bolts will be shorter. Please see above.
Range of Motion
Tilt: 3 degrees up, to 12 degrees DOWN (adjustable)
Swivel: None
Extension from wall: 1.9" when parallel/flat to the wall
Design & Construction
Solid toughened steel construction
Durable scratch resistant finish in Black
Easy installation
Bubble Level included in components package
Curved TV Support
Lockable (padlock not included)
Included in Box
Mount
Mounting hardware
Mount bolts included: (4) M5x15, (4) M6x15, (4) M8x15, (4) M5x35, (4) M6x35, (4) M8x36, (4) M8x50
Washers and Spacers: (4) M8/M6/M5 Washer, 6 round washers, 4 spacers, 4 concrete anchors
User manual
