| Connector A: | 3.5mm TRS Stereo Male |
| Connector B: | 3.5mm TRRS 4 Conductor Male |
|
Ship Weight:
|
0.08 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

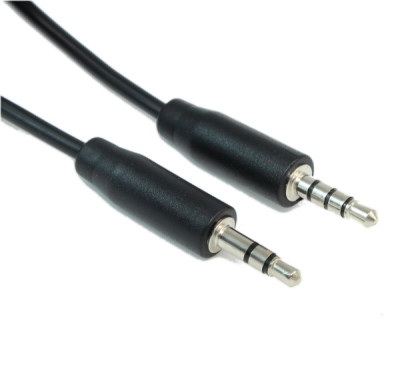

Record line-level audio from your mixer or soundboard directly to your smart-phone. This special cable requires you insert the TRRS (3 black band) end into the audio port of your smart-phone, or other audio output device. Internal wiring uses special resistors to properly set the necessary audio level needed for recording. The TRS end is labeled AUDIO SOURCE, and the TRRS angled end "CAPTIONING"
Specifications and Features:- Connector A (Destination): 3.5mm TRRS 4 conductor (Right Angled)
- Connector B (Source): 3.5mm TRS 3 conductor stereo
- Allows your external audio output to replace your smartphone's microphone
- Allows for perfect sound recording
- Works with any line-level audio source including mixers, soundboards, laptops, tablets, etc

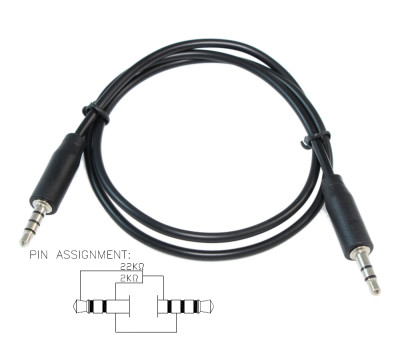

- Includes embedded attenuator that allows for line-level to microphone-level conversion
SPECIAL NOTE: Compatible devices: iPhone 5, 5s, SE, 6, 6 Plus, 6s, 6s Plus,
iPhone 7, 7s, 8 and iPhone X will need to be used with a 3.5mm to lightning adapter.
iPad and iPod
Macbook, Macbook Air and Pro, Mac Mini and Pro
Android smartphones and devices
Windows phones
Tablets.
NOT suitable and NOT compatible with: Older Samsung Galaxy models and the Samsung Galaxy Note 5, iPhone 4s and below, select Motorola Droid models, outputs that are already mic-level, Zoom H2n
