| Connector A: | 2.5mm TRRS 4 Conductor Male |
| Connector B: | Solder Terminal |
|
Ship Weight:
|
0.04 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8536.69.40.10 |
This product use the
SMALLER 2.5mm connector!. Connects TRRS requiring 4 conductors (such as left/right audio, microphone, plus ground). Great for making your own TRRS 2.5mm 4 conductor Cables, or for repairing existing cables. Wire terminals are attached using solder (not included).

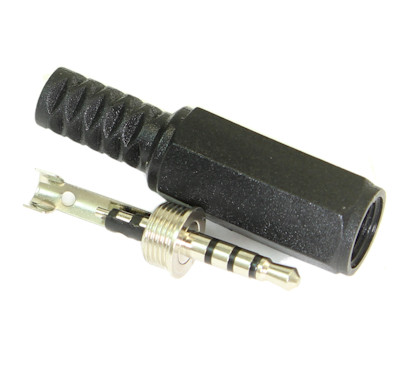

Features- 2.5mm 4 conductor (3 black bands) TRRS plug
- Nickel Plated
- Strain relief
- Outer Dimensions (at PVC outer molding): 9.1mm-9.6mm
- Outer Dimensions (with PVC outer molding REMOVED): 8.0mm
- Self-solder
NOTE: Do NOT confuse this 2.5mm connector with the slightly larger 3.5mm connector. Due to the nature of the small solder connectors, the use of a micro-head soldering iron is recommend to successfully solder wire to this connector
