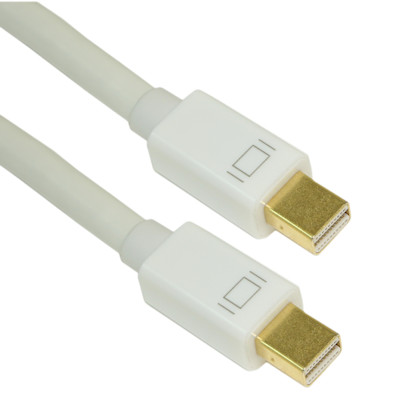

| Connector A: | Mini DisplayPort Male |
| Connector B: | Mini DisplayPort Male |
| Color: | White |
|
Ship Weight:
|
0.28 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |
DisplayPort version 1.3 was approved on 15 September 2014. DisplayPort v1.3 offers dazzling resolutions up to 8K@30Hz, with support also for 4K@120Hz, and of course previous v1.2 resolutions and features. This standard increases overall transmission bandwidth to 32.4 Gbit/s with the new HBR3 mode featuring 8.1 Gbit/s per lane (up from 5.4 Gbit/s with HBR2 in version 1.2), for a total data throughput of 25.92 Gbit/s after factoring in 8b/10b encoding overhead. This bandwidth is enough for a 4K UHD display (3840 x 2160) at 120 Hz with 24 bit/px RGB color, a 5K display (5120 x 2880) at 60 Hz with 30 bit/px RGB color, or an 8K UHD display (7680 x 4320) at 30 Hz with 24 bit/px RGB color.
Resolutions actually obtained will be dependent on quality of source output and display input. Not all device hardware will support these resolutions. Support to 8K@30Hz may be limited to 6ft maximum cable length
Specifications and Features- Supports DP v1.3
- Connectors: MINI DisplayPort to MINI DisplayPort
- Resolution support to 8K@30Hz
- HBR3 (High Bit Rate 3): 8.10 Gbit/s per lane
- Maximum Total Bandwidth: 32.40 Gbit/s
- Maximum Total Data Rate (Sustained): 25.92 Gbit/s
- ITU-R BT.2020 Support
- Audio: Sample Rate - 768 kHz / 24bits / 8channels
- 30AWG
- Color: White
This cable is NOT a Thunderbolt(TM) cable - it is a MINI-DISPLAYPORT cable. This MAY or MAY NOT be compatible with Apple(TM) products that require it use Thunderbolt(TM) technologiesLOT COLOR DISCLAIMER: My Cable Mart manufactures and purchases their grommets, wall-plates, keystone inserts, decora frames, and other ABS and PVC products from MULTIPLE different factories and suppliers. As such, we cannot guarantee that a product listed as the SAME COLOR will exactly match another product also with that same color due to lot dye differences. Color shown on photo is an approximate representation of the actual color.
