| Connector A: | RJ45 Ethernet Female |
| Connector B: | RJ45 Ethernet Female |
|
Ship Weight:
|
0.29 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8504.40.85.00 |

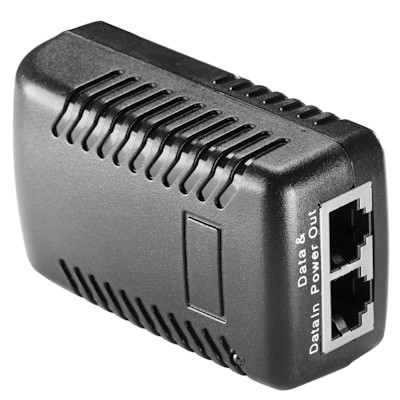

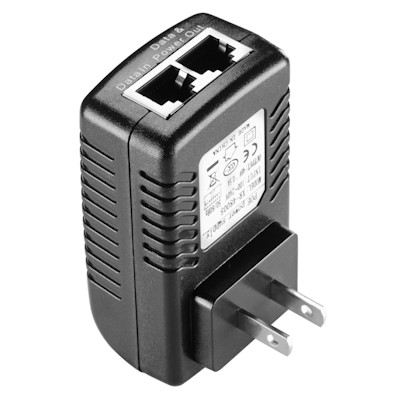

This single plug-in style POE injector provides "Power Over Ethernet" for devices such as IP phones, home networked devices, security cameras, and other devices that use POE technology to provide 48V of power to their device.
Specifications and Features- Output: 48V DC 500mA (24 Watts Maximum Power) - Please do not order if your unit requires more than 500 MilliAmps
- Input: 100-240V 50/60HZ
- Adheres to IEEE 802.3af standards
- Output: 48V-0.5A / 24 Watts Max
- Input Current: 1A
- Efficiency: 80% Min
- Line / Load Regulation: 3% / 5%
- Ripple / Noise: 200mV p-p
- Turn-On Delay: 2 Seconds Max
- Rise Time: 40 mS Max
- Protections : Auto Recover Over-Voltage, Short Circuit, Over-Current
- Safety and EMC Standards: UL 60950, CE, RoHS
- Operating Temperature: -10 to +40C (14 to +104F)
- Network Connector Type: RJ45 Shielded
- POE Type: Passive POE ( Pins 4,5 V+, Pins 7,8 V-)
