| Connector A: | BNC Male |
|
Ship Weight:
|
0.04 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8536.69.40.10 |
The 6G-SDI standard is 100% backward compatible with the SD-SDI, ED-SDI, HD-SDI, and 3G-SDI specifications (SMPTE 259M, 344M, 292M, 373M, 424M, and the 6G-SDI standard of SMPTE ST-2081), but supports the faster 6Gbps speed needed for tomorrows 4Kx2K video/audio applications. Use this 6G-SDI compression connector to build your own 6G-SDI cable and support 6G-SDI (4K) technology. Tested used 200ft Quad Shield RG6 coax cables

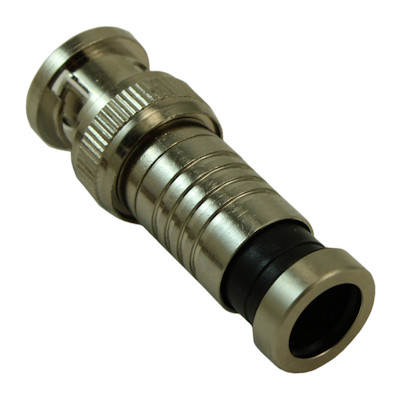

Specifications and Details:- BNC Compress Connector for QUAD-SHIELD RG6 Coax Cable.
- 75 ohm impedance to use for RG6 Quad Shield
- Supports: 1080P (All formats to YUV 4:4:4), 10/12-bit 4Kx2K RAW, 10-bit 4Kx2K YUV 4:2:2 using 6G-SDI Cables to 200ft
Installation Tip: Strip off 1/2inch of the insulation, shielding, AND dielectric (white insulation material) leaving just the solid copper core exposed. Attach the brass center connection pin to the copper core wire, and insert it through the female opening, through the small hole. Some force will be required to do this, until the brass pin is flush to the opening of the BNC connector. Now proceed to use the compression tool to tighten the connector to the outer insulation.
