| Connector A: | HDMI Standard Type A Male |
| Connector B: | HDMI Standard Type A Male |
|
Ship Weight:
|
4.25 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

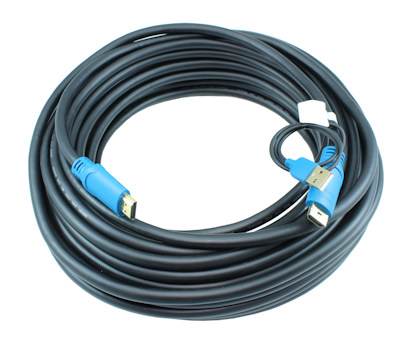

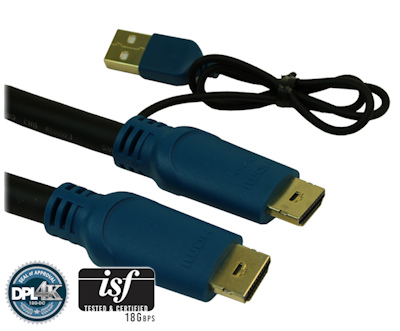

Our TITAN(TM) cables, developed and certified by DPL Labs(TM) has broken through the 40ft barrier, offering proven 4Kx2K/60Hz/4:4:4/18Gbps technology, for a true copper wire solution up to 100ft / 30 meters! TITAN's advanced high-conductivity copper results in lower losses than with standard OFC copper. That design has provided a method of extending the length of an 18G Passive HDMI cable from a previous longest length of 15ft to lengths up to 100ft.
These active UHDT cables are empowered by a patented TITAN DIGITAL module embedded in the display-end connector. This module is designed to function under HDMI 2.1 with 4 discrete channels each capable of 12Gbps (an aggregate of 48Gbps). Powered by a USB cable, TITAN delivers 3 discrete voltages that work independently of the HDMI source 5V supply preventing voltage variations from the source.
Specifications and Details:- 4K x 2K and 3D Support - Resolutions to 4K (4096x2160) at 60Hz /4:4:4 / 18Gbps
- HDMI Ethernet Channel - (HEC) Delivers Ethernet data interconnectivity to compatible devices
- Audio Return Channel - (ARC) Allows the HDMI connection between a television and A/V receiver to transmit audio two ways
- 18 Gbps Total Bandwidth (independently lab tested by DPL Labs)
- HDCP 2.2 Support
- Uses patented DPL Labs TITAN(TM) Chipset
- Wire Gauge: 24 AWG
- End Connector Dimensions: 22.0mm W x 15.2mm H
- S-Locked(TM) patented locking HDMI connectors provides for retention force to 8lbs
- CL-2 (Class 2) rated for in-wall installation
- Gold Plated 1u (All 19 wires and Ground Shroud)
- PURE copper wire for maximum conductivity WITHOUT any harmful lead (RoHS)
- 19 pin, Male to Male, Type A Connector
- DPL Labs Certified to HDMI Version 2.0 testing specifications.
- FCC 47 CFR Part 15 / ANSI C63.4 Certified for Class B (Certificate available)
- USB Power Source (5v) REQUIRED at display end of signal (power supply not included).
TITAN Technology Technical DocLOT COLOR DISCLAIMER: My Cable Mart manufactures and purchases their grommets, wall-plates, keystone inserts, decora frames, and other ABS and PVC products from MULTIPLE different factories and suppliers. As such, we cannot guarantee that a product listed as the SAME COLOR will exactly match another product also with that same color due to lot dye differences. Color shown on photo is an approximate representation of the actual color.
