| Connector A: | RJ45 Ethernet Male |
| Connector B: | RJ45 Ethernet Male |
| Color: | Gray |
|
Ship Weight:
|
0.06 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

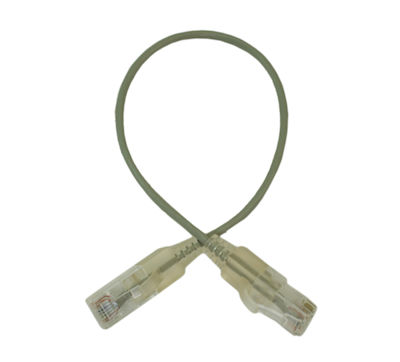

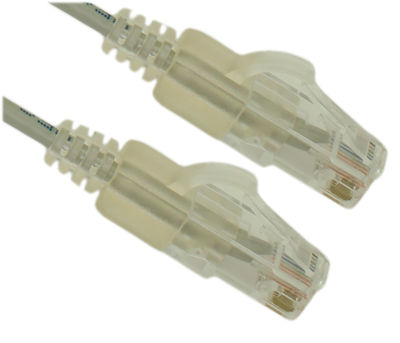

This patch cable uses 28 AWG 4 pair UTP Ethernet wire and is designed to optimize the space in telecommunication room and data center. Cable diameter is mere 3.6mm compared to standard 5.8mm (0.23") and provides 48% reduction in diameter and 73% reduction in space. Small size means cables are easier to manage, higher-density patching is more feasible, and valuable rack space can be used for equipment and ventilation, rather than cable management. It is also suitable for residential installation to keep cabling around the cable/DSL modem and router low profile. Our slim patch cable comes with neat looking clear strain relief boots.
Specifications:- Designed For: Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and other Computer Networking applications.
- Certification: TIA/EIA
- T-568B standard wiring
- Cable Outer Diameter: 3mm (0.12 inches)
- Slim/Compact RJ-45 clip protector
- Cat 6 rated UTP (Unshielded Twisted Pair) patch cable
- CM Jacket
- Temperature Rating: -20C to +60C
- 28AWG 4pair stranded pure copper wire
- Clear strain relief boot
- 50 micron gold plated short body RJ45 plug
- RoHS compliant
