| Connector A: | HDMI Standard Type A Male |
| Connector B: | HDMI Standard Type A Male |
|
Ship Weight:
|
6.70 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |
Our HDMI AOC (Active Optical Hybrid Cable) is the most competitive long reach HDMI interconnection solution on the market. It supports HDMI Maximum Data Rate 18Gbps with light weight, flexible, making it easy to install in conduit. With our advanced optical engine embedded chipset, this HDMI Hybrid Cable provides full HDMI signal integrity, support up to 100m (328ft) maximum length. No external power required.
Advanced leading edge technology makes use of 4 glass fibers and 7 copper wires to provide the necessary power to the embedded micro-chips at the transmit (TX) and receiving (RX) end of the cable. All the advanced features you need for today and tomorrows 4K audio and video! HDMI 2.0 / HDCP 2.2 verified by Quantum Data, and authorized HDMI LLC testing facility. This is a UNI-DIRECTIONAL cable - it must be installed with the DISPLAY connector to the display, and the SOURCE connector to the source equipment to function properly. Now with a
LIFETIME REPLACEMENT WARRANTY against manufacturing defects.

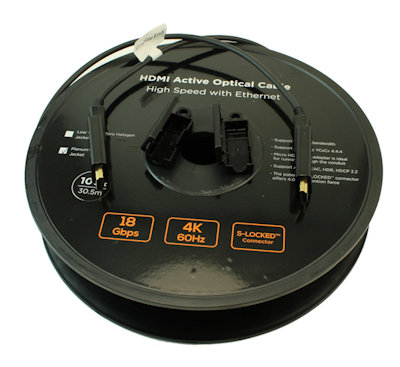

NOTE: Our SHORTER lengths of fiber cables (33, 49, 66, and 82ft) might not be shipped on the plastic spool as shown in the photo, but instead securely packaged in a static poly bag with protective foam covers for the ends.
Features and Specifications
- 4K x 2K 60Hz/fps YUV 4:4:4 at 8bit (18Gbps) Support
- Plenum Rated (UL Listed) for commercial IN-WALL installation

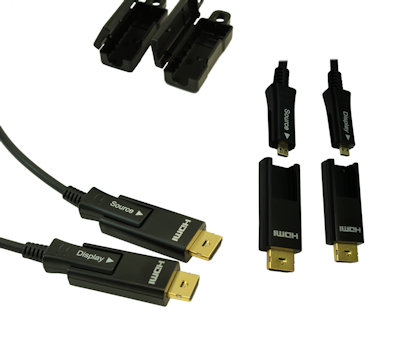

- Detachable HDMI Type-A Ends to facilitate conduit installation
- Great for running through conduit: 15mm (.6 inches) at widest point
- Patented locking HDMI end connectors
- Full 3D Support, HDCP 2.2 support
- Maximum bend radius: 52mm
- Meets HDMI 2.0 testing standards (results independently certified by Murideo and Quantumn Data)
- Independently tested (Radiated Emission Test) to meet FCC standards from 30-1000Mhz. Testing documents available upon request.
- 3D, 4Kx2K, as well as 1080p, 720p, 480p
- HEAC support (HDMI Ethernet), ARC (Audio Return Channel), HDR (High Dynamic Range) Support
- Temperatures: Operating: 14F to 122F (-10C to 50C), Storage: -4F to 140F (-20C to 60C)
- Failure Bend Testing: To Max Angle 45 degrees and 200N, 10,000 times
Official (UL) Plenum (CMP) Certificate (required if cable being inspected)
Installation Instructions and Cautions
