| Connector A: | USB Type C Female |
| Connector B: | USB Type C Female |
| Color: | Black |
|
Ship Weight:
|
0.03 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8536.69.40.30 |

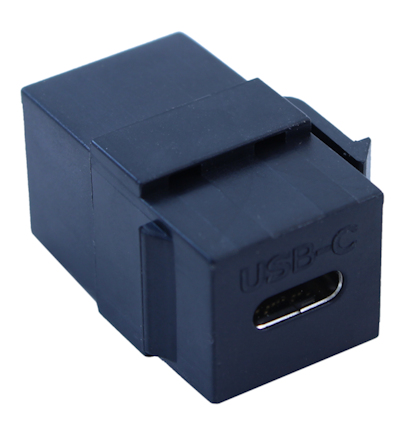

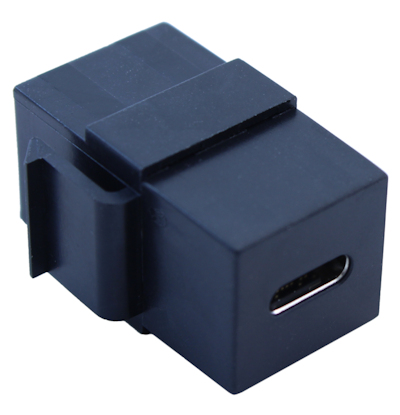

This is a COUPLER TYPE keystone connector for USB v3.1, with female type C connections on both sides.
Specifications- USB 3.1 Type C Female to Female Connectors
- Support for up to 5Gbps
- Supports 60 Watt and 100 Watt power delivery mode
- Can be used as a USB Type C Coupler
- Color: Black
- NOTE: Use of long USB cables with this keystone insert WILL degrade performance
IMPORTANT NOTE ABOUT CONNECTED CABLE ORIENTATION: Most USB-C cables will have a chip embedded in ONE or BOTH connector ends. When TWO USB-C cables are used in a circuit (coupled with this connector for example), the joined USB cable circuit will ONLY work with the USB-C cables attached to the coupler in ONE orientation. This is a design limitation of coupling 2 USB-C cables together and MAY require you to "mark" one side of the end of your visible USB-C cable to identify which orientation supports data. Charging capabilities (which is NOT affected) will work in EITHER orientation.
My Cable Mart Keystone WALL-PLATES and INSERTS all adhere to NEMA standards. Keystone insert modules have a rectangular face of 14.5mm wide by 16.0mm high, and are held in place with flexible tabs. This allows them to be snapped into a mounting plate with correspondingly-sized holes called ports. All keystone inserts, regardless of the type of jack they carry are interchangeable and replaceable. This provides for much flexibility in arranging and mounting many different type of electrical and A/V jacks into one plate.
