| Connector A: | USB Standard Type A Male |
| Connector B: | USB Type Micro-B Male |
| Color: | Black |
|
Ship Weight:
|
0.08 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

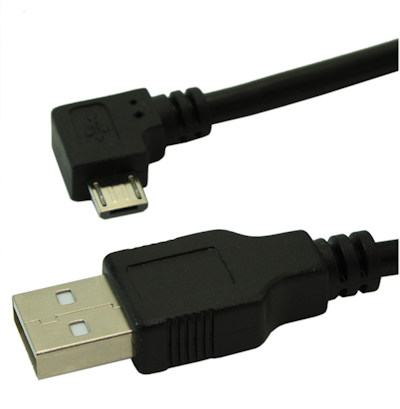

USB A Male to 90 degree ANGLED Micro USB 5 pin Male Cable, Black. This USB A to Micro USB B 5pin Cable provides one USB A Male connector, and one Micro USB B connector to create a simple way to connect mobile devices to a USB capable computer for every day tasks such as data synchronization and file transfers. This cable uses a much thicker 24AWG for is conductor cables to ensure proper data transfer and optimal charging. The angled Micro-B connector is ideal for connecting smart-phones and other devices where the connection is at the bottom of such device, allowing the cable to immediately be angled to the side for easy access.
Cable Specifications:
- Cable Conductors Gauge: 28AWG (1P) + 24AWG*2C
- Shielding and Jacket Type: Aluminum foil + drain wire 7/0.12mm pure copper
- Wire: CU (Pure Copper)
- Connector 1: 90 degree angled Micro-B 5 Pin Connector, Male
- Connector 2: Straight USB 2.0 Type A Connector, Male
- Outer Cable Diameter: 4.5mm.
Cable compatible with most Android and Windows smart-phones, and Blackberry phones manufactured since 2010 using the MICRO-B USB Connector. Newer model Samsung Galaxy phones and tablets, however, may now be using the USB Type-C connectors.
