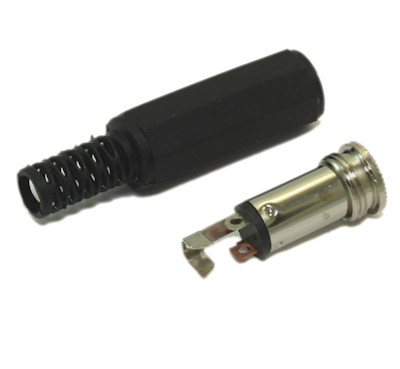

2.5mm Plug/Jack, Stereo (or Mono) TRS 3 Conductor, Self Solder, FEMALE

14 reviews

2.5mm Plug/Jack, Stereo (or Mono) TRS 3 Conductor, Self Solder, FEMALE

Price: $0.51 each

FE-ADT-334

QUANTITY: In Stock

REQUEST QUOTE OR CUSTOMIZATION

PRODUCT DATASHEET

Qty Discount Pricing
2 - 5	6 - 10	11 - 30	31 - 50	51 - 100	101 - 200	201+
$0.47	$0.45	$0.43	$0.41	$0.40	$0.40	$0.39

Connector A:

2.5mm TRS Stereo Female

Connector B:

Solder Terminal

Free Shipping on Orders $100+ for qualifying products,
Learn More.

Add to Wishlist

Share via Email

Share on Facebook

Share on Twitter

Connector A:	2.5mm TRS Stereo Female
Connector B:	Solder Terminal
Ship Weight:	0.02 lbs
Warranty:	Ltd Lifetime
Tariff Code:	8536.69.40.10

CAUTION: This connector user the smaller 2.5mm connector size. Connects stereo audio requiring 3 conductors (left and right audio plus ground). Great for making your own TRS 2.5mm 3 conductor Cables, or for repairing existing cables. Wire terminals are attached using solder (not included).

NOTE: This FEMALE self-solder connector can also be used with MONO (TS) applications. Use the tip of the jack for signal and then tie the ring and sleeve together with your signal ground to make it fool proof

Features

2.5mm 3 conductor (2 band) FEMALE TRS plug
Nickel Plated
Strain relief
Outer Dimensions (at PVC outer molding): 9.1mm-9.6mm
Outer Dimensions (with PVC outer molding REMOVED): 8.0mm
Self-solder
Can ALSO be used with MONO (TS) wiring applications (see note above)

Need a LARGE quantity or customization? [REQUEST QUOTE or CUSTOMIZATION]

Product Reviewed 14 times. Only most recent 100 shown

Rating Stars	Reviewer	Date
	Nathaniel M From Blacksburg, VA	01/03/25
	I have several USB-A to 2.5mm power adapters, and plan on using these to provide 5v power to a variety of projects.
	Mike L From Gold Canyon, AZ	12/17/24
	max n From huntsville, AR	09/04/24
	Brian T From WILTON, CT	04/07/23
	Paul G From ROCHESTER, NY	07/07/22
	Russell M From Niagara Falls, NY	08/30/21
	Stefan M From Edmonton, AB	08/05/21
	Product is as expected. I would advise caution when soldering though, as the connectors are close together (so don't use too much solder or they may connect to each other) and the rubber is pretty easy to melt (if you accidentally graze it with a soldering iron). However, despite my screwups, It's performing very well. I'm using to connect to a two pole speaker (via a stereo to mono circuit) as this allows me to use a 2.5mm to 3.5mm cable with playback controls to connect my phone (and if the cable breaks, I can just get another one instead of having to cut, strip, and solder a new one to the speaker.)
	Benjamin M From Houston, TX	11/30/20
	wire leads are very fragile. I realize you didn't make the product but...would be nice if it was a bit stronger for "trail and errors". I should have purchased 3, 2 for backups.
	Joseph C From Ellijay, GA	10/26/20
	Nick L From Lima, NY	10/22/20
	Dennis R From Maryland Heights, MO	09/14/20
	Fabricating an adapter cable to connect audio from an Apple TRRS 4 conductor plug to a standard TRS 3 conductor stereo connector.
	JOHN C From RED LODGE, MT	05/14/20
	Ronald M From Indianapolis, IN	05/06/20
	Richard A From Thomasville, GA	09/05/19
