Ship Weight:
|
11.39 lbs |
|
Warranty: |
1 Year |
|
Tariff Code: |
8544.42.20.00 |

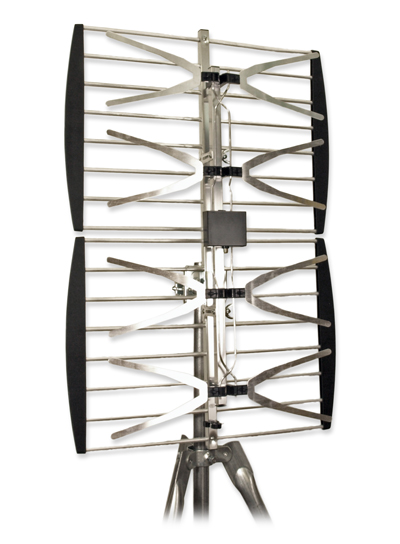

Quad Bay Outdoor UHF/HDTV Bowtie Antenna. Compact directional antenna is engineered to receive UHF signals for digital and high definition television. Bowtie design provides wider pickup pattern, ideal when channels not all in the exact same direction. Vertical profile makes this ideal for attic mounting also. More suitable when your location is rural, or further away (approx. 60 miles) from HD-TV transmitting tower location. Both VHF and UHF signals in general can be successfully received using this antenna when mounted in a location facing your antenna array, and the antenna array is within ~30 miles. Beyond 30 miles, a VHF signal MAY not be successfully acquired.
- Features:
- Stacked quad bay bay design for increased gain
- Pre assembled antenna sections for reduced installation time
- Heavy duty construction with rugged mast clamps and associated hardware
Specifications:
- Nominal range: Approx 60 miles
- Frequency range: 460 ~ 862Mhz (covers all digital channels)
- Maximum gain: 14dB
- Maximum front/back ratio: 22dB
- Horizontal beam width: 60 degrees
- Impedance: 75ohm, female “F†connector
- Approx Size: 31.5 x 21.5 inches
- Normal Mount Location: Side of House facing antenna array location, attic, or roof-top
NOTE: Mast (pole) not included. See related products at RIGHT for suitable mounting pole. Your TV MUST have a built-in TV tuner to receive “over-the-air†TV signals. Please consult your TV manual
If SIDE-MOUNTING, be sure to order the Side-Mounting Clamp Kit
