| Connector A: | Fiber Optic SFP Connector |
| Connector B: | RJ45 Ethernet Male |
|
Ship Weight:
|
0.07 lbs |
|
Warranty: |
30 Days |
|
Tariff Code: |
8525.50.30.35 |

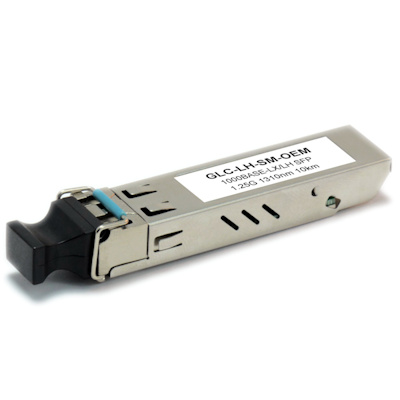

The Cisco(TM) compatible GLC-LH-SM-OEM modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications. The 1000BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers. When used over legacy multimode fiber type, the transmitter should be coupled through a mode conditioning patch cable.
1.25GBd SFP (Small Form Pluggable) Long Wavelength (1310nm) Transceiver
Features:- Up to 1.25 GBd bi-directional data links
- Compliant with IEEE 802.3z Gigabit Ethernet and 1000BASELX and SFP MSA
- Hot-pluggable SFP footprint
- 1310nm Fabry-Perot laser transmitter
- Duplex LC connector
- Built-in digital diagnostic functions
- Compatible for use on all specified Cisco(TM) Switches
- Up to 10km on 9/125um SMF
- Single power supply 3.3V
- RoHS Compliance
- Class 1 laser product complies with EN 60825-1
- Operating temperature range: 0C to 70C.
NOTE: Cisco is TRADEMARK Cisco Corp
