| Connector A: | Fiber Optic SFP Connector |
| Connector B: | RJ45 Ethernet Male |
|
Ship Weight:
|
0.06 lbs |
|
Warranty: |
30 Days |
|
Tariff Code: |
3917.23.00.00 |

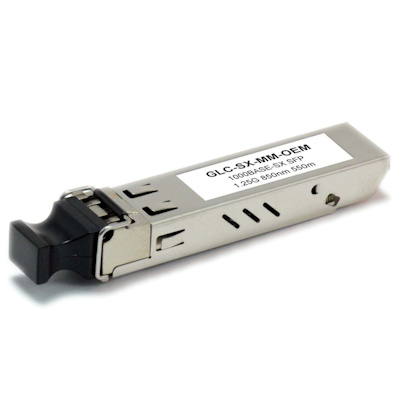

The Cisco(TM) compatible GLC-SX-MM-OEM modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications. The 1000BASE-SX SFP, compatible with the IEEE 802.3z 1000BASE-SX standard, operates on legacy 50um multimode fiber links up to 550 m and on 62.5 µm Fiber Distributed Data Interface (FDDI)-grade multimode fibers up to 220 m. It can support up to 1km over laser-optimized 50um multimode fiber cable.
1.25GBd SFP (Small Form Pluggable) Short Wavelength (850nm) Transceiver
Features:- Up to 1.25 GBd bi-directional data links
- Compliant with IEEE 802.3z Gigabit Ethernet and 1000BASESX and SFP MSA
- Hot-pluggable SFP footprint
- 850nm VCSEL laser transmitter
- Duplex LC connector
- Built-in digital diagnostic functions
- Up to 550m on 50/125um MMF
- Up to 300m on 62.5/125um MMF
- Single power supply 3.3V
- Compatible for use on all specified Cisco Switches
- RoHS Compliance
- Class 1 laser product complies with EN 60825-1
- Operating temperature range: 0C to 70C
NOTE: Cisco is TRADEMARK Cisco Corp
