Connector A: | HDMI Standard Type A Female |
Connector B: | HDMI Standard Type A Female |
Color: | White |
Ship Weight:
|
0.04 lbs |
Warranty: |
Ltd Lifetime |
Tariff Code: |
8536.69.40.30 |

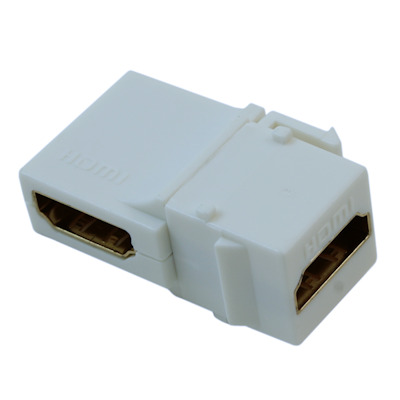

Connect your standard HDMI (male/male) cable through the wall and into the back of this coupler-type connector, then your shorter length of HDMI cable (male/male) to the front! Requires standard keystone face plate, and low-voltage gang box (sold separately - available here! Build your OWN Keystone wallplate combination!
- Version 1.4a Certified
- Female HDMI on both front and back
- Keystone is rotated 90 degrees to insert into any standard keystone faceplate
- Gold-plated connections
- 90 Degree angle allowing for installation in TIGHT locations

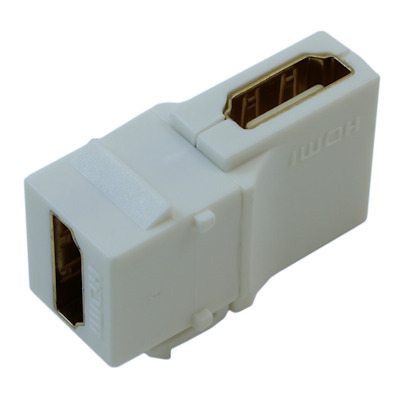

Installation Caution: The rear of this HDMI keystone insert is oriented at a 90 degree upward angle. The use of multiple keystone inserts with this particular HDMI angle connection may cause the HDMI port to become inaccessible if such other keystone inserts are ALSO mounted vertically. This will then "block access" for such HDMI cable to be successfully connected
My Cable Mart Keystone WALL-PLATES and INSERTS all adhere to NEMA standards. Keystone insert modules have a rectangular face of 14.5mm wide by 16.0mm high, and are held in place with flexible tabs. This allows them to be snapped into a mounting plate with correspondingly-sized holes called ports. All keystone inserts, regardless of the type of jack they carry are interchangeable and replaceable. This provides for much flexibility in arranging and mounting many different type of electrical and A/V jacks into one plate.
LOT COLOR DISCLAIMER: My Cable Mart manufactures and purchases their grommets, wall-plates, keystone inserts, decora frames, and other ABS and PVC products from MULTIPLE different factories and suppliers. As such, we cannot guarantee that a product listed as the SAME COLOR will exactly match another product also with that same color due to lot dye differences. Color shown on photo is an approximate representation of the actual color.
